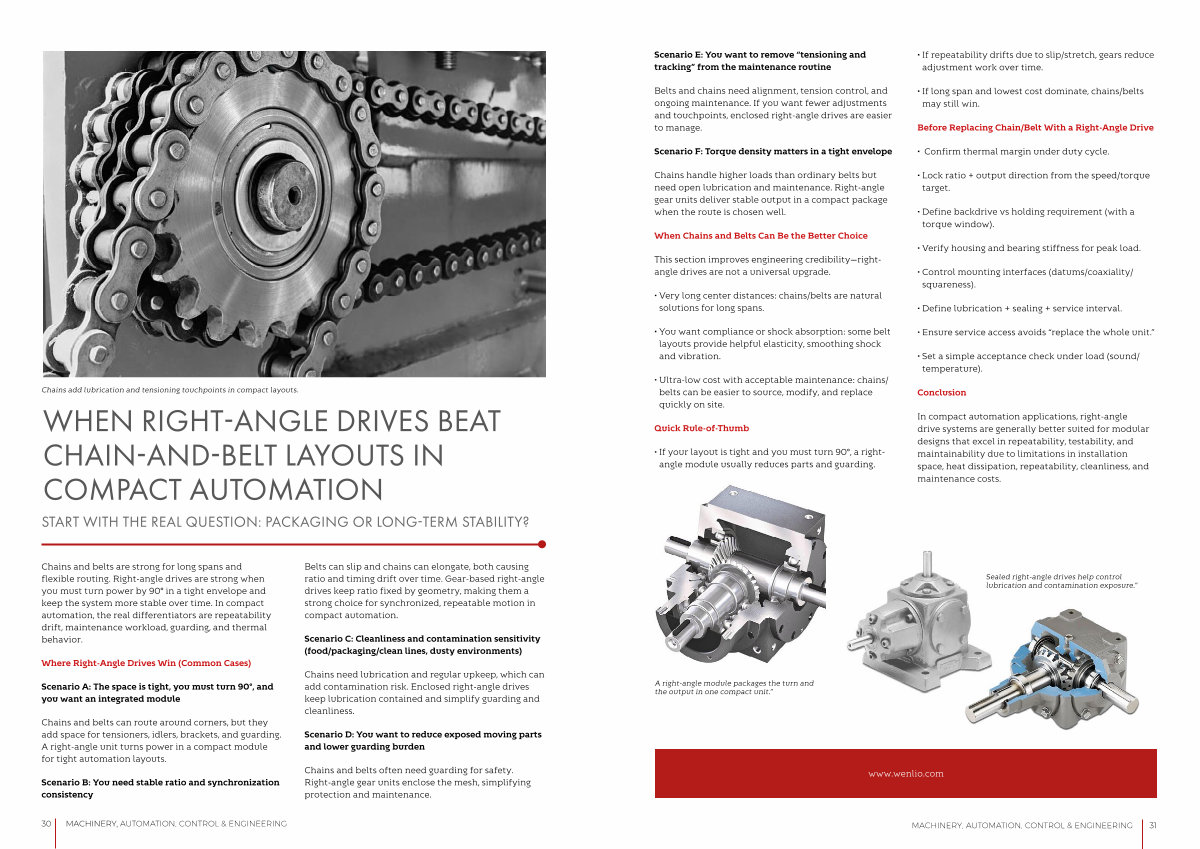

Scenario E: You want to remove“ tensioning and tracking” from the maintenance routine
Belts and chains need alignment, tension control, and ongoing maintenance. If you want fewer adjustments and touchpoints, enclosed right-angle drives are easier to manage.
Scenario F: Torque density matters in a tight envelope
Chains handle higher loads than ordinary belts but need open lubrication and maintenance. Right-angle gear units deliver stable output in a compact package when the route is chosen well.
When Chains and Belts Can Be the Better Choice
This section improves engineering credibility— rightangle drives are not a universal upgrade.
• Very long center distances: chains / belts are natural solutions for long spans.
• You want compliance or shock absorption: some belt layouts provide helpful elasticity, smoothing shock and vibration.
• Ultra-low cost with acceptable maintenance: chains / belts can be easier to source, modify, and replace quickly on site.
Quick Rule-of-Thumb
• If your layout is tight and you must turn 90 °, a rightangle module usually reduces parts and guarding.
• If repeatability drifts due to slip / stretch, gears reduce adjustment work over time.
• If long span and lowest cost dominate, chains / belts may still win.
Before Replacing Chain / Belt With a Right-Angle Drive
• Confirm thermal margin under duty cycle.
• Lock ratio + output direction from the speed / torque target.
• Define backdrive vs holding requirement( with a torque window).
• Verify housing and bearing stiffness for peak load.
• Control mounting interfaces( datums / coaxiality / squareness).
• Define lubrication + sealing + service interval.
• Ensure service access avoids“ replace the whole unit.”
• Set a simple acceptance check under load( sound / temperature).
Conclusion
In compact automation applications, right-angle drive systems are generally better suited for modular designs that excel in repeatability, testability, and maintainability due to limitations in installation space, heat dissipation, repeatability, cleanliness, and maintenance costs.
Sealed right-angle drives help control lubrication and contamination exposure.”
A right-angle module packages the turn and the output in one compact unit.” www. wenlio. com
