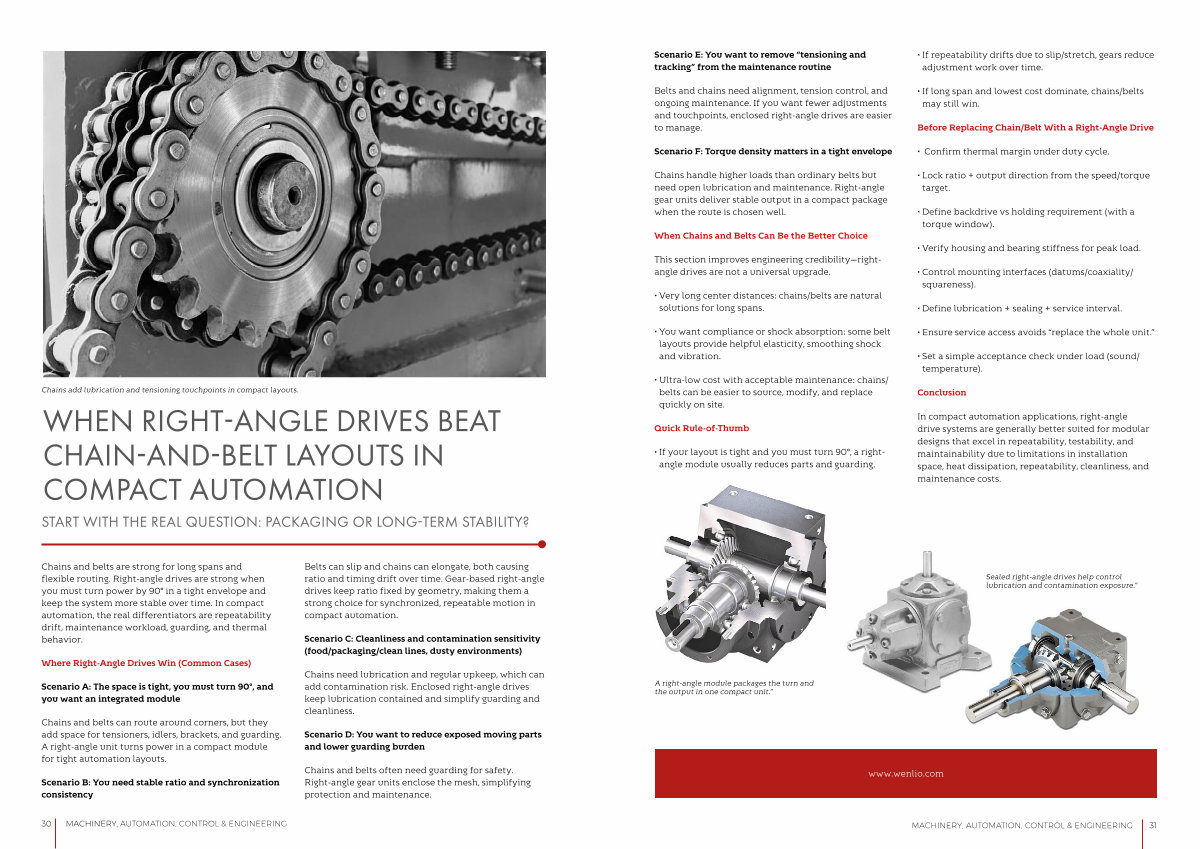

Chains add lubrication and tensioning touchpoints in compact layouts.
WHEN RIGHT-ANGLE DRIVES BEAT CHAIN-AND-BELT LAYOUTS IN COMPACT AUTOMATION
START WITH THE REAL QUESTION: PACKAGING OR LONG-TERM STABILITY?
Chains and belts are strong for long spans and flexible routing. Right-angle drives are strong when you must turn power by 90 ° in a tight envelope and keep the system more stable over time. In compact automation, the real differentiators are repeatability drift, maintenance workload, guarding, and thermal behavior.
Where Right-Angle Drives Win( Common Cases)
Scenario A: The space is tight, you must turn 90 °, and you want an integrated module
Chains and belts can route around corners, but they add space for tensioners, idlers, brackets, and guarding. A right-angle unit turns power in a compact module for tight automation layouts.
Scenario B: You need stable ratio and synchronization consistency
Belts can slip and chains can elongate, both causing ratio and timing drift over time. Gear-based right-angle drives keep ratio fixed by geometry, making them a strong choice for synchronized, repeatable motion in compact automation.
Scenario C: Cleanliness and contamination sensitivity( food / packaging / clean lines, dusty environments)
Chains need lubrication and regular upkeep, which can add contamination risk. Enclosed right-angle drives keep lubrication contained and simplify guarding and cleanliness.
Scenario D: You want to reduce exposed moving parts and lower guarding burden
Chains and belts often need guarding for safety. Right-angle gear units enclose the mesh, simplifying protection and maintenance.
