M2S Bikes - User Manual 2023 Edition | Page 9

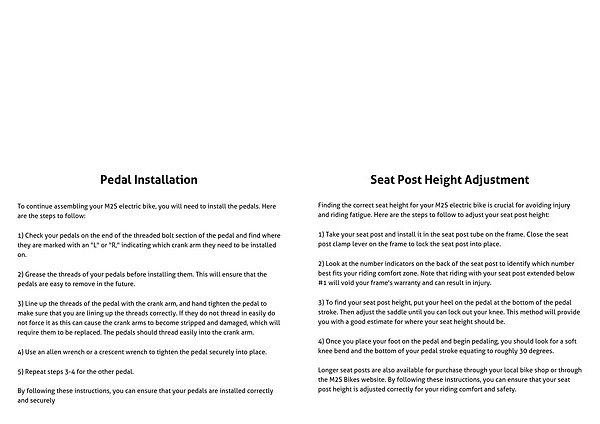

Seat Post Height Adjustment

Finding the correct seat height for your M2S electric bike is crucial for avoiding injury and riding fatigue. Here are the steps to follow to adjust your seat post height:

1) Take your seat post and install it in the seat post tube on the frame. Close the seat post clamp lever on the frame to lock the seat post into place.

2) Look at the number indicators on the back of the seat post to identify which number best fits your riding comfort zone. Note that riding with your seat post extended below #1 will void your frame's warranty and can result in injury.

3) To find your seat post height, put your heel on the pedal at the bottom of the pedal stroke. Then adjust the saddle until you can lock out your knee. This method will provide you with a good estimate for where your seat height should be.

4) Once you place your foot on the pedal and begin pedaling, you should look for a soft knee bend and the bottom of your pedal stroke equating to roughly 30 degrees.

Longer seat posts are also available for purchase through your local bike shop or through the M2S Bikes website. By following these instructions, you can ensure that your seat post height is adjusted correctly for your riding comfort and safety.
