LYNX Series 5000 - October 2013 October 2013 | Page 36

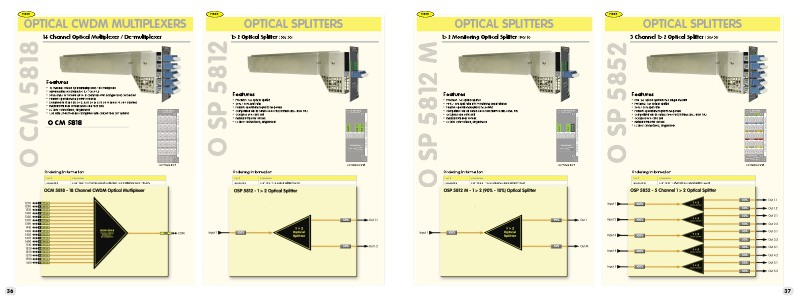

FIBER FIBER OPTICAL CWDM MULTIPLEXERS Features • • • • • • • • 18 channel CWDM optical multiplexer / de-multiplexer Wavelengths according to ITU-T G.694.2 Send and / or receive up to 18 channels over a single ?ber connection Passive operation (no power needed) Designed to ?t in R FR 5012, R FR 5013, R FR 5014 and R FR 5041 Frames Installs from rear of rack (uses one rack slot) LC ?ber connections, singlemode Use with LYNX modules con?gured with CWDM ?ber SFP options 1>2 Optical Splitter (50/50) O SP 5812 O CM 5818 18 Channel Optical Multiplexer / De-multiplexer OPTICAL SPLITTERS Features • • • • • • • O CM 5818 Precision 1>2 optical splitter 50% / 50% split ratio Passive operation (requires no power) Compatible will all Series 5000 rack frames (2RU and 1RU) Occupies one card slot Installs from rear of rack LC ?ber connections, singlemode Connection Panel Ordering Information Connection Panel Ordering Information Part # 36 Description Part # Description 1000005818 O CM 5818 - 18 Channel Optical Multiplexer / De-multiplexer 1270 - 1610nm 1000005812 O SP 5812 - 1>2 Optical Splitter (50/50)
