LYNX Series 5000 - October 2013 October 2013

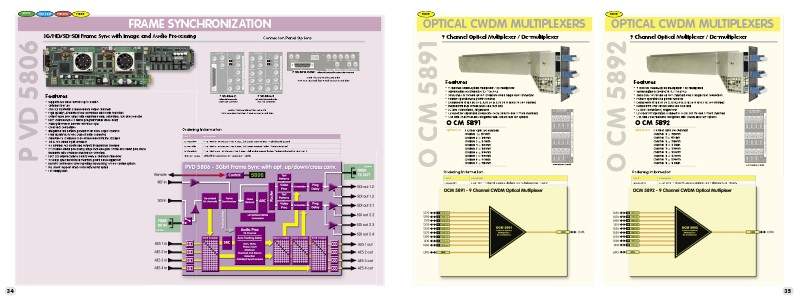

FIBER OPTICAL CWDM MULTIPLEXERS O CM 5891 9 Channel Optical Multiplexer / De-multiplexer Features • • • • • • • • • 9 Channel Optical Multiplexer / De-multiplexer Features 9 channel CWDM optical multiplexer / de-multiplexer Wavelengths according to ITU-T G.694.2 Send and / or receive up to 9 channels over a single ?ber connection Passive operation (no power needed) Designed to ?t in R FR 5012, R FR 5013, R FR 5014 and R FR 5041 Frames Installs from rear of rack (uses one rack slot) LC ?ber connections, singlemode UPG port for expansion (connect to O CM 5892 to add 9 more channels) Use with LYNX modules con?gured with CWDM ?ber SFP options • • • • • • • • • O CM 5891 Optical I/O OPTICAL CWDM MULTIPLEXERS O CM 5892 FIBER 9 x Fiber Optic I/O channels Channel 1 = 1270nm Channel 2 = 1290nm Channel 3 = 1310nm Channel 4 = 1330nm Channel 5 = 1350nm Channel 6 = 1370nm Channel 7 = 1390nm Channel 8 = 1410nm Channel 9 = 1430nm Ordering Information Connection Panel 9 channel CWDM optical multiplexer / de-multiplexer Wavelengths according to ITU-T G.694.2 Send and / or receive up to 9 channels over a single ?ber connection Passive operation (no power needed) Designed to ?t in R FR 5012, R FR 5013, R FR 5014 and R FR 5041 Frames Installs from rear of rack (uses one rack slot) LC ?ber connections, singlemode UPG port for expansion (connect to O CM 5891 to add 9 more channels) Use with LYNX modules con?gured with CWDM ?ber SFP options O CM 5892 Optical I/O 9 x Fiber Optic I/O channels Channel 10 = 1450nm Channel 11 = 1470nm Channel 12 = 1490nm Channel 13 = 1510nm Channel 14 = 1530nm Channel 15 = 1550nm Channel 16 = 1570nm Channel 17 = 1590nm Channel 18 = 1610nm Connection Panel Ordering Information Part # Description Part # Description 1000005891 O CM 5891 - 9 Channel Optical Multiplexer / De-multiplexer 1270 - 1430nm 1000005892 O CM 5892 - 9 Channel Optical Multiplexer / De-multiplexer 1450 - 1610nm 35

LYNX Series 5000 - October 2013 October 2013 | Page 35
