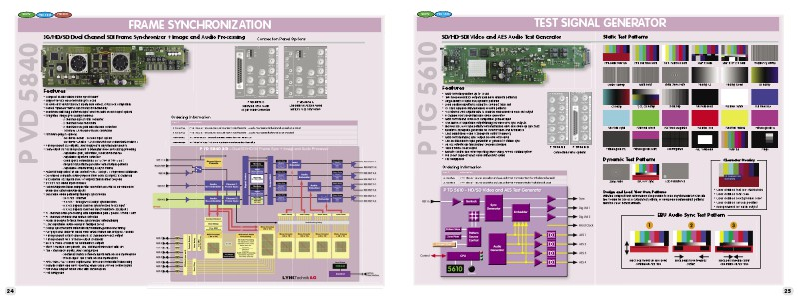

LYNX Series 5000 - October 2013 October 2013 | Page 25

SDTV

HD 1.5G

TEST SIGNAL GENERATOR

P TG 5610

SD/HD-SDI Video and AES Audio Test Generator

Static Test Patterns

75% Bars Over Red

•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•

Multi-format operation up to 1.5Gbit
Two independent SDI outputs (can have different patterns)
Large library of static and dynamic patterns
Load additional patterns using the compact ?ash slot
CF Card supplied with hundreds of extra patterns
4 x External AES outputs with 16 channel embedder for each SDI output
8 channel user programmable audio generator
Multi-format and cross lock compatible genlock input
One frame of adjustable output timing for video and sync outputs
Includes EBU A/V sync pattern for transmission alive and audio lip sync tests
Real time Zoneplate generator for chrominance and luminance
User adjustable H and V Zoneplate center frequency
Multi-format analog sync output (bi-level or tri-level)
Use as standalone sync generator or genlock to station sync
All AES outputs are transformer coupled (isolated)
48KHz Word Clock output
Remote control and error reporting when using APPolo control system
Full SNMP support when used with server option
Hot swappable

P TG 5610 D

SMPTE RP 219 Bars

Frequency Sweep

Multi Burst

Static Zone Plate

Y Ramp UP

Y Ramp Down

Cb Ramp

Y, Cr, Cb Ramp

Stair Step

Full Field Black

Full Field White

Full Field Blue

Full Field Cyan
