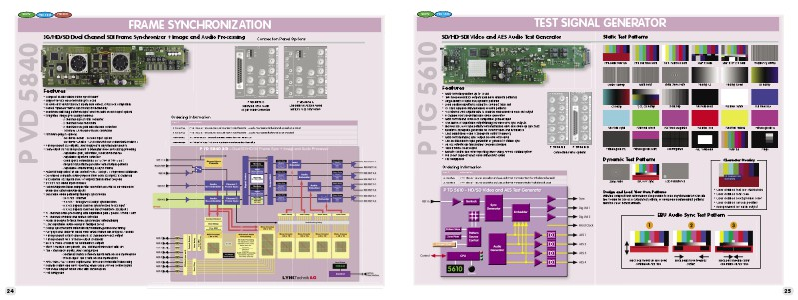

SDTV HD 1.5G HD 3G FRAME SYNCHRONIZATION P VD 5840 3G/HD/SD Dual Channel SDI Frame Synchronizer + Image and Audio Processing Connection Panel Options Features • Compact dual channel frame synchronizer • Support for SDI video formats up to 3Gbit • Bi-level or tri-level reference input, auto detect, cross lock compatible • Robust “?ywheel” frame synchronizer functionality • Seamless switching between input sources (with second input option) • Integrated Image processing includes: - 2 channel aspect ratio converter - 2 channel noise reduction - 2 channel RGB gain and lift color correction - 1 channel UP/DOWN/CROSS conversion • Firmware plug in options: - OC-5840-SCND - Second Input Option - OC-5840-UPXD2 - UP/DOWN/CROSS conversion channel 2 • 4 independent SDI outputs, user mapped to any internal resource • Each output (4) has independent 10 bit digital video processing providing: - Adjustable gain, saturation, black level and hue - Adjustable aperture correction - Color space conversion ( 601 > 709 or 709 > 601 ) - Integral test pattern generator with multiple patterns - Adjustable output timing delay (3 frame) • Automatically detect audio content PCM / DolbyE / compressed bitstream • De-embed complete audio payload from each SDI input (16 channels) • 8 x external AES inputs and / or outputs (transformer coupled) • 24 x 24 AES audio input crossbar • Individually selectable sample rate converters (on/off) for de-embedded audio and external audio inputs • Selectable audio pathways through synchronizer - 20 x AES - Internal - 4 x AES - Through 4 x DolbyE synchronizers - 8 x AES bypass channel synchronized to SDI input 1 - 8 x AES bypass channels synchronized to SDI input 2 • 48 channel audio processing with adjustable gain / phase / mute / sum • 48 channel overload and silence detection • Audio is delayed to track video synchronizer automatically • User adjustable audio delays in multiple zones • DolbyE synchronizers automatically maintain guard band timing • No “pops and clicks” in audio even when frames are dropped / added • 4 Independent output embedders (16 channel) for each output • 4 independent 48 x 16 mono output crossbars • 80 x 16 mono crossbar for external AES outputs • Store 7 module user presets, and switch between four with GPI • Two external GPI inputs, user con?gurable: - Seamless switch between inputs (with second input option) - Freeze input 1 (or 2 with second input option) • AFD / WSS / VI / Closed Caption and Timecode metadata transcoding • Remote control and error reporting when using APPolo control system • Full SNMP support when used with server option • Hot swappable 24 P VD 5840 D Balanced AES3 Audio 25 pin SubD Connector P VD 5840 U Unbalanced AES3id Audio MiniDin 75? Connectors Ordering Information Part # Description 5155045840 P VD 5840 U - 3G/HD/SD Dual SDI Frame Synchronizer + Audio Processing (unbalanced AES3id on MiniDin) 5155055840 P VD 5840 D - 3G/HD/SD SDI Dual Frame Synchronizer + Audio Processing (balanced AES3 on SubD) 1000000012 OC-5840-SCND - Second SDI input option for PVD 5840 U/D 1300000020 OC-5840-UPXD2 - UP/DOWN/CROSS conversion for Channel 2
