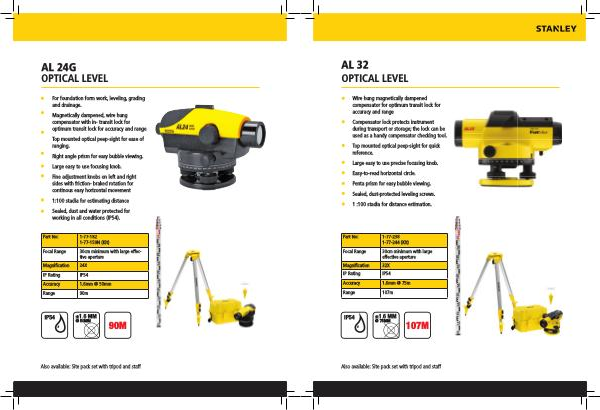

AL 32 OPTICAL LEVEL
Wire hung magnetically dampened compensator for optimum transit lock for accuracy and range
Compensator lock protects instrument during transport or storage ; the lock can be used as a handy compensator checking tool .
Top mounted optical peep-sight for quick reference .
Large easy to use precise focusing knob . Easy-to-read horizontal circle . Penta prism for easy bubble viewing . Sealed , dust-protected leveling screws . 1 : 100 stadia for distance estimation .
Part No : 1-77-238 1-77-244 ( Kit )
Focal Range
Magnification IP Rating Accuracy Range
30cm minimum with large effective aperture
32X IP54 1.6mm @ 75m 107m
IP54
± 1.6 MM
@ 75MM
107M
Also available : Site pack set with tripod and staff
