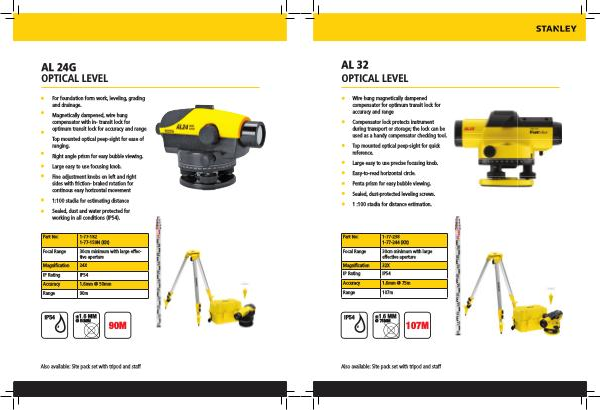

AL 24G OPTICAL LEVEL
For foundation form work , leveling , grading and drainage .
Magnetically dampened , wire hung compensator with in- transit lock for optimum transit lock for accuracy and range
Top mounted optical peep-sight for ease of ranging .
Right angle prism for easy bubble viewing . Large easy to use focusing knob .
Fine adjustment knobs on left and right sides with friction- braked rotation for continous easy horizontal movement
1:100 stadia for estimating distance
Sealed , dust and water protected for working in all conditions ( IP54 ).
Part No : 1-77-182 1-77-159N ( Kit )
Focal Range
Magnification IP Rating Accuracy Range
30cm minimum with large effective aperture
24X IP54 1.6mm @ 50mm 90m
IP54
± 1.6 MM
@ 50MM
90M
Also available : Site pack set with tripod and staff
