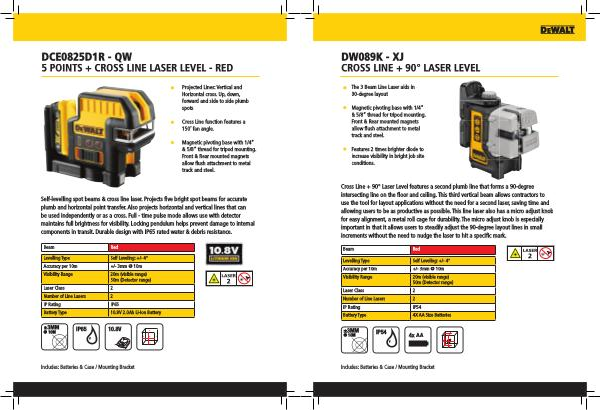

DW089K - XJ CROSS LINE + 90 ° LASER LEVEL
The 3 Beam Line Laser aids in 90-degree layout
Magnetic pivoting base with 1 / 4 ” & 5 / 8 ” thread for tripod mounting . Front & Rear mounted magnets allow flush attachment to metal track and steel .
Features 2 times brighter diode to increase visibility in bright job site conditions .
Cross Line + 90 ° Laser Level features a second plumb line that forms a 90-degree intersecting line on the floor and ceiling . This third vertical beam allows contractors to use the tool for layout applications without the need for a second laser , saving time and allowing users to be as productive as possible . This line laser also has a micro adjust knob for easy alignment , a metal roll cage for durability . The micro adjust knob is especially important in that it allows users to steadily adjust the 90-degree layout lines in small increments without the need to nudge the laser to hit a specific mark .
Beam
Red
Levelling Type Self Leveling : +/ - 4 ° Accuracy per 10m
+/ - 3mm @ 10m
Visibility Range 20m ( visible range ) 50m ( Detector range )
Laser Class 2 Number of Line Lasers 2 IP Rating Battery Type
IP54 4X AA Size Batteries
± 3MM
@ 10M
IP54
4x AA
Includes : Batteries & Case / Mounting Bracket
