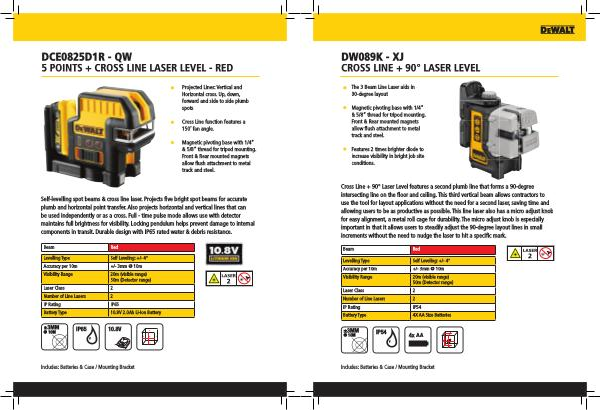

DCE0825D1R - QW 5 POINTS + CROSS LINE LASER LEVEL - RED
Projected Lines : Vertical and Horizontal cross . Up , down , forward and side to side plumb spots
Cross Line function features a 150˚ fan angle .
Magnetic pivoting base with 1 / 4 ” & 5 / 8 ” thread for tripod mounting . Front & Rear mounted magnets allow flush attachment to metal track and steel .
Self-levelling spot beams & cross line laser . Projects five bright spot beams for accurate plumb and horizontal point transfer . Also projects horizontal and vertical lines that can be used independently or as a cross . Full - time pulse mode allows use with detector maintains full brightness for visibility . Locking pendulum helps prevent damage to internal components in transit . Durable design with IP65 rated water & debris resistance .
Beam
Red
Levelling Type Self Leveling : +/ - 4 ° Accuracy per 10m
+/ - 3mm @ 10m
Visibility Range 20m ( visible range ) 50m ( Detector range )
Laser Class 2 Number of Line Lasers 2 IP Rating Battery Type
IP65 10.8V 2.0Ah Li-Ion Battery
± 3MM
@ 10M
IP65
10.8V
Includes : Batteries & Case / Mounting Bracket
