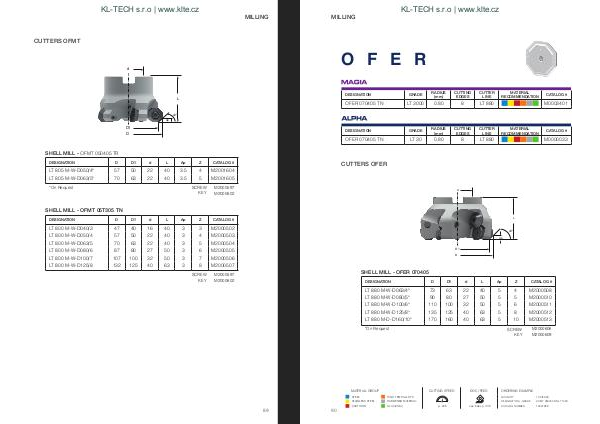

LAMINA - katalog | KL-TECH s.r.o. | www.klte.cz Lamina | Page 91

KL-TECH s.r.o | www.klte.cz
MILLING
O F E R
GRADE RADIUS
(mm) CUTTING
EDGES CUTTER
LINE
LT 3000 0.80 8 LT 880
DESIGNATION GRADE RADIUS
(mm) CUTTING
EDGES CUTTER
LINE
OFER 070405 TN LT 30 0.80 8 LT 880
DESIGNATION
OFER 070405 TN
MATERIAL
RECOMMENDATION
CATALOG #
M0003401
MATERIAL
RECOMMENDATION
CATALOG #
M0000033
CUTTERS OFER
d
L
43°
Ap
D1
D
SHELL MILL - OFER 070405
DESIGNATION
LT 880 M-W-D063/4*
D D1 d L Ap Z CATALOG #
73 63 22 40 5 4 M2000508
LT 880 M-W-D080/5* 90 80 27 50 5 5 M2000510
LT 880 M-W-D100/6* 110 100 32 50 5 6 M2000511
LT 880 M-W-D125/8* 135 125 40 63 5 8 M2000512
LT 880 M-D-D160/10* 170 160 40 63 5 10 M2000513
*On Request
MATERIAL GROUP
90
SCREW
KEY
CUTTING SPEED
STEEL HIGH TEMP ALLOYS
STAINLESS STEEL HARDENED MATERIAL
CAST IRON ALU(>8%Si)
p. 226
DOC / FEED
see index p. 335
M2000606
M2000609
ORDERING EXAMPLE
QUANTITY 10 PIECES
DESIGNATION + GRADE CCMT 060204 NN LT 1000
CATALOG NUMBER T0001888
