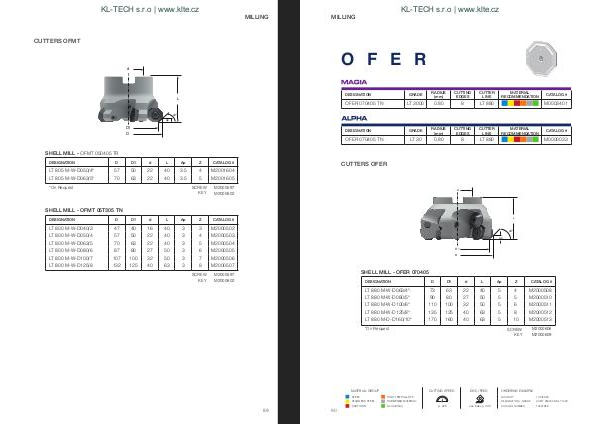

MILLING
CUTTERS OFMT
d
L
43°
Ap
D1
D
SHELL MILL - OFMT 050405 TR
DESIGNATION
D D1 d L Ap Z CATALOG #
LT 805 M-W-D050/4* 57 50 22 40 3.5 4 M2001604
LT 805 M-W-D063/5* 70 63 22 40 3.5 5 M2001605
*On Request
SCREW
KEY M2000597
M2000602
SHELL MILL - OFMT 05T305 TN
DESIGNATION
D D1 d L Ap Z CATALOG #
LT 800 M-W-D040/3 47 40 16 40 3 3 M2000502
LT 800 M-W-D050/4 57 50 22 40 3 4 M2000503
LT 800 M-W-D063/5 70 63 22 40 3 5 M2000504
LT 800 M-W-D080/6 87 80 27 50 3 6 M2000505
LT 800 M-W-D100/7 107 100 32 50 3 7 M2000506
LT 800 M-W-D125/8 132 125 40 63 3 8 M2000507
SCREW
KEY
M2000597
M2000602
