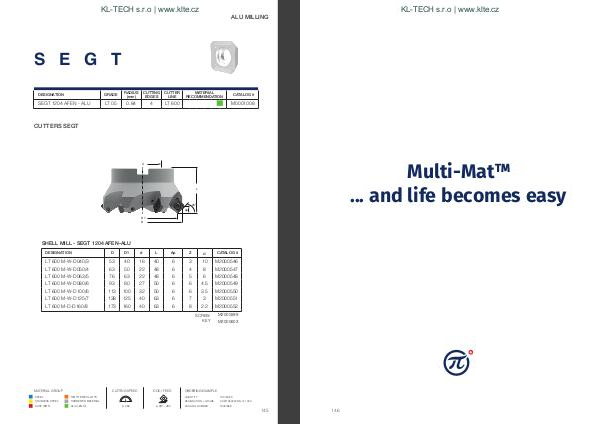

LAMINA - katalog | KL-TECH s.r.o. | www.klte.cz Lamina | Page 146

KL-TECH s.r.o | www.klte.cz
ALU MILLING
S E G T
DESIGNATION GRADE RADIUS
(mm) CUTTING
EDGES CUTTER
LINE
SEGT 1204 AFEN - ALU LT 05 0.84 4 LT 600
MATERIAL
RECOMMENDATION
CATALOG #
M0001008
CUTTERS SEGT
d
L
45°
Ap
D1
D
SHELL MILL - SEGT 1204 AFEN-ALU
D D1 d L Ap Z LT 600 M-W-D040/3 53 40 16 40 6 3 10 M2000546
LT 600 M-W-D050/4 63 50 22 48 6 4 α 8 M2000547
LT 600 M-W-D063/5 76 63 22 48 6 5 6 M2000548
LT 600 M-W-D080/6 93 80 27 50 6 6 4.5 M2000549
LT 600 M-W-D100/6 113 100 32 50 6 6 3.5 M2000550
LT 600 M-W-D125/7 138 125 40 63 6 7 3 M2000551
LT 600 M-D-D160/8 173 160 40 63 6 8 2.2 M2000552
DESIGNATION
CATALOG #
SCREW
KEY
MATERIAL GROUP
CUTTING SPEED
STEEL HIGH TEMP ALLOYS
STAINLESS STEEL HARDENED MATERIAL
CAST IRON ALU(>8%Si)
p. 280
DOC / FEED
p. 281 - 282
M2000599
M2000603
ORDERING EXAMPLE
QUANTITY 10 PIECES
DESIGNATION + GRADE CCMT 060204 NN LT 1000
CATALOG NUMBER T0001888
