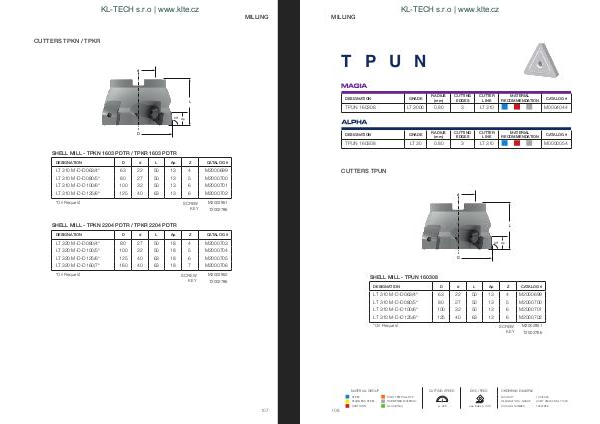

LAMINA - katalog | KL-TECH s.r.o. | www.klte.cz Lamina | Page 109

KL-TECH s.r.o | www.klte.cz
MILLING
T P U N
GRADE RADIUS
(mm) CUTTING
EDGES CUTTER
LINE
LT 3000 0.80 3 LT 310
DESIGNATION GRADE RADIUS
(mm) CUTTING
EDGES CUTTER
LINE
TPUN 160308 LT 30 0.80 3 LT 310
DESIGNATION
TPUN 160308
MATERIAL
RECOMMENDATION
CATALOG #
M0004044
MATERIAL
RECOMMENDATION
CATALOG #
M0000054
CUTTERS TPUN
d
L
90° Ap
D
SHELL MILL - TPUN 160308
D d L Ap Z CATALOG #
63 22 50 13 4 M2000699
LT 310 M-D-D080/5* 80 27 50 13 5 M2000700
LT 310 M-D-D100/6* 100 32 50 13 6 M2000701
LT 310 M-D-D125/6* 125 40 63 13 6 M2000702
DESIGNATION
LT 310 M-D-D063/4*
*On Request
MATERIAL GROUP
108
SCREW
KEY
CUTTING SPEED
STEEL HIGH TEMP ALLOYS
STAINLESS STEEL HARDENED MATERIAL
CAST IRON ALU(>8%Si)
p. 226
DOC / FEED
see index p. 335
M2002951
T2002786
ORDERING EXAMPLE
QUANTITY 10 PIECES
DESIGNATION + GRADE CCMT 060204 NN LT 1000
CATALOG NUMBER T0001888
