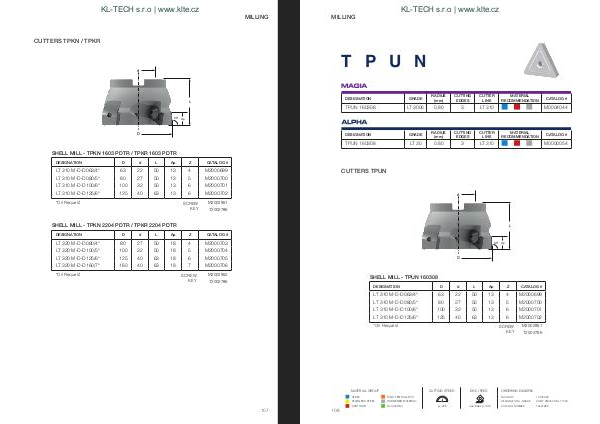

MILLING
CUTTERS TPKN / TPKR
d
L
90° Ap
D
SHELL MILL - TPKN 1603 PDTR / TPKR 1603 PDTR
DESIGNATION
D
d
Ap Z CATALOG #
50 13 4 M2000699
50 13 5 M2000700
32 50 13 6 M2000701
40 63 13 6 M2000702
LT 310 M-D-D063/4* 63 22
LT 310 M-D-D080/5* 80 27
LT 310 M-D-D100/6* 100 LT 310 M-D-D125/6* 125
L
*On Request
SCREW
KEY
M2002951
T2002786
SHELL MILL - TPKN 2204 PDTR / TPKR 2204 PDTR
D d L Ap Z CATALOG #
LT 320 M-D-D080/4* 80 27 50 18 4 M2000703
LT 320 M-D-D100/5* 100 32 50 18 5 M2000704
LT 320 M-D-D125/6* 125 40 63 18 6 M2000705
LT 320 M-D-D160/7* 160 40 63 18 7 M2000706
DESIGNATION
*On Request
SCREW
KEY
M2002952
T2002786
107
