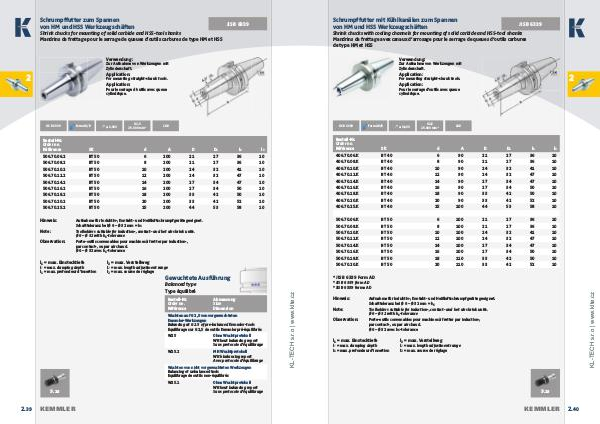

Schrumpffutter mit Kühlkanälen zum Spannen
von HM und HSS Werkzeugschäften
69871
JIS DIN
B 6339
Shrink chucks with cooling channels for mounting of solid carbide and HSS-tool shanks
Mandrins de frettage avex canaux d‘arrosage pour le serrage de queues d‘outils carbures
de type HM et HSS
Verwendung:
Zur Aufnahme von Werkzeugen mit
Zylinderschaft.
Application:
2
For mounting straight-shank tools.
Application:
Pour le serrage d’outils avec queue
cylindrique.
JIS B 6339
Form AD/B
≤ 0,003
G2,5
25.000 min -1
CAD
Bestell-Nr.
Order no.
Référence SK d A D D 1 l 1 l 2
406.70.06.K BT 40 6 90 21 27 36 10
406.70.08.K BT 40 8 90 21 27 36 10
406.70.10.K BT 40 10 90 24 32 41 10
406.70.12.K BT 40 12 90 24 32 47 10
406.70.14.K BT 40 14 90 27 34 47 10
406.70.16.K BT 40 16 90 27 34 50 10
406.70.18.K BT 40 18 90 33 42 50 10
406.70.20.K BT 40 20 90 33 42 52 10
406.70.25.K BT 40 25 100 44 53 58 10
506.70.06.K BT 50 6 100 21 27 36 10
506.70.08.K BT 50 8 100 21 27 36 10
506.70.10.K BT 50 10 100 24 32 41 10
506.70.12.K BT 50 12 100 24 32 47 10
506.70.14.K BT 50 14 100 27 34 47 10
506.70.16.K BT 50 16 100 27 34 50 10
506.70.18.K BT 50 18 110 33 42 50 10
506.70.20.K BT 50 20 110 33 42 52 10
* JIS B 6339 Form AD
Hinweis:
Note:
Observation:
www.klte.cz
* JIS B 6339 form AD
* JIS B 6339 forme AD
Aufnahme für Induktiv-, Kontakt- und Heißluftschrumpfgeräte geeignet.
Schafttoleranz bei Ø 6 – Ø 32 mm = h 6
Toolholders suitable for induction-, contact- and hot air shrink units.
Ø 6 – Ø 32 with h 6 -tolerance
Porte-outils convenables pour machines à fretter par induction-,
par contact-, ou par air chaud.
Ø 6 – Ø 32 avec h 6 -tolerance
l 1 = max. Einstecktiefe
l 1 = max. clamping depth
l 1 = max. profondeur d’insertion
l 2 = max. Verstellweg
l 2 = max. length adjustment range
l 2 = max. course de réglage
9.23
KEMMLER
2. 40
