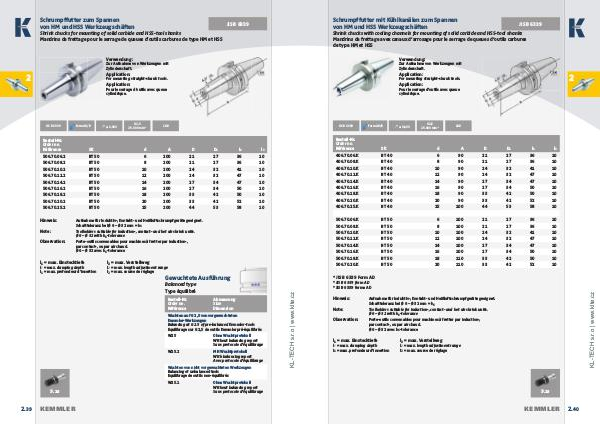

Schrumpffutter zum Spannen
von HM und HSS Werkzeugschäften
69871
JIS DIN
B 6339
Shrink chucks for mounting of solid carbide and HSS-tool shanks
Mandrins de frettage pour le serrage de queues d‘outils carbures de type HM et HSS
Verwendung:
Zur Aufnahme von Werkzeugen mit
Zylinderschaft.
Application:
2
For mounting straight-shank tools.
Application:
Pour le serrage d’outils avec queue
cylindrique.
JIS B 6339
Form AD/B
≤ 0,003
G2,5
25.000 min -1
CAD
Bestell-Nr.
Order no.
Référence SK d A D D 1 l 1 l 2
506.70.06.2 BT 50 6 200 21 27 36 10
506.70.08.2 BT 50 8 200 21 27 36 10
506.70.10.2 BT 50 10 200 24 32 41 10
506.70.12.2 BT 50 12 200 24 32 47 10
506.70.14.2 BT 50 14 200 27 34 47 10
506.70.16.2 BT 50 16 200 27 34 50 10
506.70.18.2 BT 50 18 200 33 42 50 10
506.70.20.2 BT 50 20 200 33 42 52 10
506.70.25.2 BT 50 25 200 44 53 58 10
Hinweis:
Note:
Observation:
Aufnahme für Induktiv-, Kontakt- und Heißluftschrumpfgeräte geeignet.
Schafttoleranz bei Ø 6 – Ø 32 mm = h 6
Toolholders suitable for induction-, contact- and hot air shrink units.
Ø 6 – Ø 32 with h 6 -tolerance
Porte-outils convenables pour machines à fretter par induction-,
par contact-, ou par air chaud.
Ø 6 – Ø 32 avec h 6 -tolerance
l 1 = max. Einstecktiefe
l 1 = max. clamping depth
l 1 = max. profondeur d’insertion
l 2 = max. Verstellweg
l 2 = max. length adjustment range
l 2 = max. course de réglage
Balanced type
Type équilibré
Bestell-Nr.
Order no.
Référence
Abmessung
Size
Dimension
Wuchten auf G 2,5 von vorgewuchteten
Kemmler-Werkzeugen
Balancing at G 2.5 of pre-balanced Kemmler-tools
Equilibrage sur G 2,5 de outils Kemmler pré-équilibrés
W25
Ohne Wuchtprotokoll
Without balancing report
Sans protocole d‘équilibrage
W25.2
Mit Wuchtprotokoll
With balancing report
Avec protocole d‘équilibrage
Wuchten von nicht vorgewuchteten Werkzeugen
Balancing of unbalanced tools
Equilibrage de outils non-équilibrés
W25.1
9.23
2. 39
KEMMLER
Ohne Wuchtprotokoll
Without balancing report
Sans protocole d‘équilibrage
www.klte.cz
Gewuchtete Ausführung
