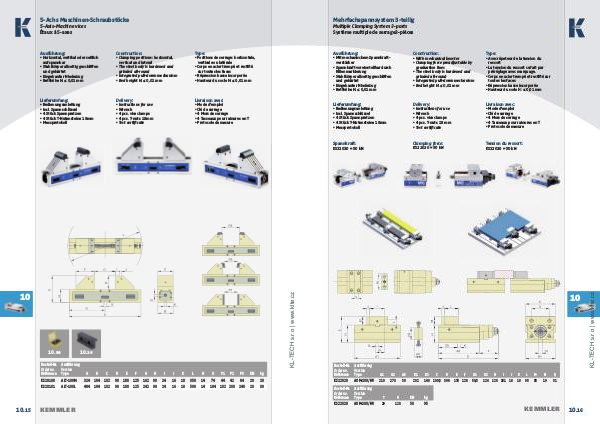

5-Achs Maschinen-Schraubstöcke
5-Axis-Machine vices
Étaux à 5-axes
Ausführung: Construction: Type:
Lieferumfang: Delivery: Livraison avec:
• Bedienungsanleitung
• Incl. Spannschlüssel
• 4 Stück Spannpratzen
• 4 Stück T-Nutensteine 18mm
• Messprotokoll
• Clamping positions: horizontal,
vertical and lateral
• The steel body is hardened and
grinded all-round
• Integrated pull-down mechanism
• Bed height H: ≤ 0,01 mm
• Positions de serrage: horizontale,
verticale ou latérale
• Corps en acier trempé et rectifi é
sur toutes les faces
• Répression basse incorporée
• Hauteur du socle H: ≤ 0,01 mm
• Instructions for use
• Wrench
• 4 pcs. vice clamps
• 4 pcs. T-nuts 18mm
• Test certifi cate
• Mode d‘emploi
• Clé de serrage
• 4 Mors de serrage
• 4 Tasseaux pour rainures en T
• Protocole de mesure
www.klte.cz
• Horizontal, vertikal oder seitlich
aufspannbar
• Stahlkörper allseitig geschliffen
und gehärtet
• Eingebauter Niederzug
• Betthöhe H: ≤ 0,01 mm
10
10.34
10. 15
10.24
Bestell-Nr.
Order no.
Référence
KS20100 Ausführung
Version
Type
ALT-100M A
B
C
324 104 102 D
90 E
F
G
180 125 162 H
90 I
24 J
16 K
18 L
350 N
14 O
74 P3
84 KN
20 kg
20
KS20101 ALT-100L 484 104 102 90 180 125 242 90 24 16 18 500 14 184 102 200 240 20 30
KEMMLER
P1
44
P2
42
