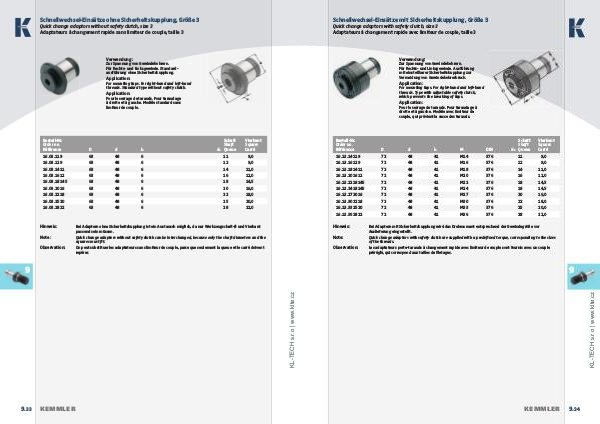

Schnellwechsel-Einsätze ohne Sicherheitskupplung, Größe 3
Quick change adaptors without safety clutch, size 3
Adaptateurs à changement rapide sans limiteur de couple, taille 3
Verwendung:
Zur Spannung von Gewindebohrern.
Für Rechts- und Linksgewinde. Standard-
ausführung ohne Sicherheitskupplung.
Application:
For mounting taps. For right-hand and left-hand
threads. Standard type without safety clutch.
Application:
Pour le serrage de tarauds. Pour taraudage
à droite et à gauche. Modèle standard sans
limiteur de couple.
D d l 1 16.03.119 63 48 6 11 16.03.129 63 48 6 12 9,0
16.03.1411 63 48 6 14 11,0
16.03.1612 63 48 6 16 12,0
16.03.18145 63 48 6 18 14,5
16.03.2016 63 48 6 20 16,0
16.03.2218 63 48 6 22 18,0
16.03.2520 63 48 6 25 20,0
16.03.2822 63 48 6 28 22,0
Hinweis:
Note:
Observation:
d 1
Schaft
Shaft
Queue
Vierkant
Square
Carré
Bestell-Nr.
Order no.
Référence
9,0
Bei Adaptern ohne Sicherheitskupplung ist ein Austausch möglich, da nur Werkzeugschaft-Ø und Vierkant
passend sein müssen.
Quick change adaptors without safety clutch can be interchanged, because only the shaft diameters and the
squares must fi t.
On peut substituer les adaptateurs sans limiteur de couple, parce que seulement la queue et le carré doivent
repérer.
