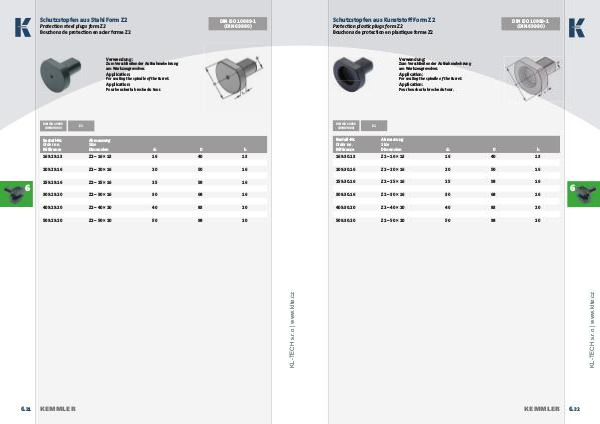

Schutzstopfen aus Kunststoff Form Z2
DIN ISO 10889-1
(DIN 69880)
Protection plastic plugs form Z2
Bouchons de protection en plastique forme Z2
Verwendung:
Zum Verschließen der Aufnahmebohrung
am Werkzeugrevolver.
Application:
For sealing the spindle of the turret.
Application:
Pour boucher la broche du tour.
DIN ISO 10889
(DIN 69880)
Z2
Abmessung
Size
Dimension d 1 D l 2
169.30.13 Z2 – 16 × 13 16 40 13
209.30.16 Z2 – 20 × 16 20 50 16
259.30.16 Z2 – 25 × 16 25 58 16
309.30.16 Z2 – 30 × 16 30 68 16
409.30.20 Z2 – 40 × 20 40 83 20
509.30.20 Z2 – 50 × 20 50 98 20
6
www.klte.cz
Bestell-Nr.
Order no.
Référence
KEMMLER
6. 32
