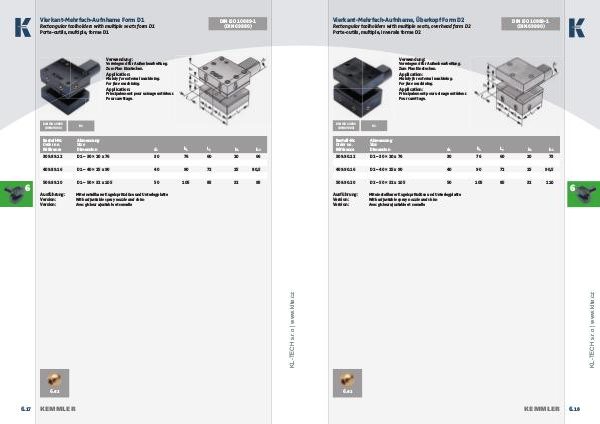

Vierkant-Mehrfach-Aufnhame Form D1
DIN ISO 10889-1
(DIN 69880)
Rectangular toolholders with multiple seats form D1
Porte-outils, multiple, forme D1
Verwendung:
Vorwiegend für Außenbearbeitung.
Zum Plan Einstechen.
Application:
Mainly for external machining.
For face machining.
Application:
Principalement pour usinage extérieur.
Pour carottage.
DIN ISO 10889
(DIN 69880)
Bestell-Nr.
Order no.
Référence Abmessung
Size
Dimension d 1 b 1 L 2 h 1 h 2
309.89.12 D1 – 30 × 20 x 76 30 76 60 20 66
409.89.16 D1 – 40 × 25 x 90 40 90 72 25 80,5
509.89.20 D1 – 50 × 32 x 105 50 105 85 32 95
Ausführung:
Version:
Version:
Mit einstellbarer Kugelspritzdüse und Unterlegplatte
With adjustable spray nozzle and shim
Avec gicleur ajustable et semelle
