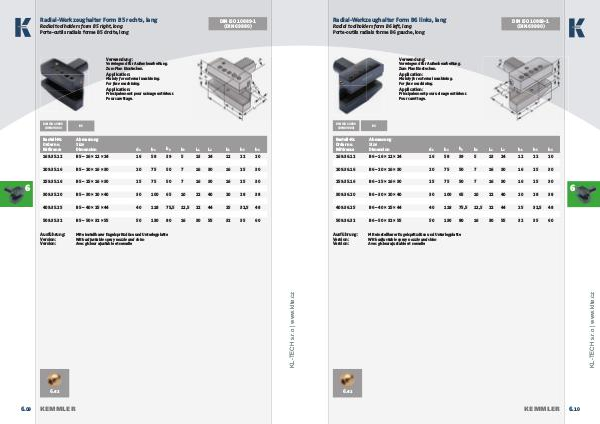

Radial-Werkzeughalter Form B6 links, lang
Radial toolholders form B6 left, long Porte-outils radials forme B6 gauche, long
DIN ISO 10889-1( DIN 69880)
Verwendung: Vorwiegend für Außenbearbeitung. Zum Plan Einstechen.
Application: Mainly for external machining. For face machining.
Application: Principalement pour usinage extérieur. Pour carottage.
DIN ISO 10889( DIN 69880)
B6
Bestell-Nr. Order no. Référence
Abmessung |
|
|
|
|
|
|
|
|
|
Size |
|
|
|
|
|
|
|
|
|
Dimension |
d 1 |
b 1 |
b 2 |
b 3 |
L 1 |
L 2 |
h 1 |
h 5 |
h 6 |
169.36.12 B6 – 16 × 12 × 24 16 58 39 5 13 24 12 22 20
209.36.16 B6 – 20 × 16 × 30 20 75 50 7 16 30 16 25 30
259.35.16 B6 – 25 × 16 × 30 25 75 50 7 16 30 16 25 30
309.36.20 B6 – 30 × 20 × 40 30 100 65 10 22 40 20 28 38
6
409.36.25 B6 – 40 × 25 × 44 40 118 75,5 12,5 22 44 25 32,5 48
509.36.32 B6 – 50 × 32 × 55 50 130 80 16 30 55 32 35 60
Ausführung: Version: Version:
Mit einstellbarer Kugelspritzdüse und Unterlegplatte With adjustable spray nozzle and shim Avec gicleur ajustable et semelle
