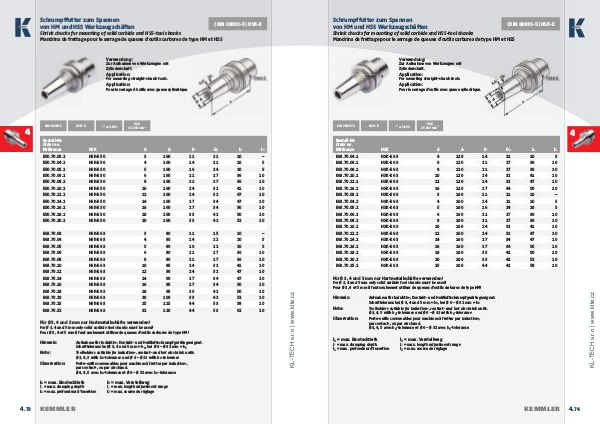

Schrumpffutter zum Spannen
von HM und HSS Werkzeugschäften
(DIN 69893-5) HSK-E
Shrink chucks for mounting of solid carbide and HSS-tool shanks
Mandrins de frettage pour le serrage de queues d‘outils carbures de type HM et HSS
Verwendung:
Zur Aufnahme von Werkzeugen mit
Zylinderschaft.
Application:
For mounting straight-shank tools.
Application:
Pour le serrage d’outils avec queue cylindrique.
DIN 69893-5
≤ 0,003
HSK - E
G6,3
15.000 min -1
4
Bestell-Nr.
Order no.
Référence HSK d A D D 1 l 1 E63.70.04.1 HSK-E 63 4 120 14 21 10 5
E63.70.06.1 HSK-E 63 6 120 21 27 36 10
E63.70.08.1 HSK-E 63 8 120 21 27 36 10
E63.70.10.1 HSK-E 63 10 120 24 32 41 10
E63.70.12.1 HSK-E 63 12 120 24 32 47 10
E63.70.16.1 HSK-E 63 16 120 27 34 50 10
E63.70.03.2 HSK-E 63 3 160 11 21 10 –
E63.70.04.2 HSK-E 63 4 160 14 21 10 5
E63.70.05.2 HSK-E 63 5 160 16 24 20 5
E63.70.06.2 HSK-E 63 6 160 21 27 36 10
E63.70.08.2 HSK-E 63 8 160 21 27 36 10
E63.70.10.2 HSK-E 63 10 160 24 32 41 10
E63.70.12.2 HSK-E 63 12 160 24 32 47 10
E63.70.14.2 HSK-E 63 14 160 27 34 47 10
E63.70.16.2 HSK-E 63 16 160 27 34 50 10
E63.70.18.2 HSK-E 63 18 160 33 42 50 10
E63.70.20.2 HSK-E 63 20 160 33 42 52 10
E63.70.25.2 HSK-E 63 25 160 44 42 58 10
l 2
Für Ø 3, 4 und 5 mm nur Hartmetallschäfte verwenden!
Hinweis:
Note:
Observation:
www.klte.cz
For Ø 3, 4 and 5 mm only solid carbide tool shanks must be used!
Pour Ø 3, 4 et 5 mm il faut seulement utiliser de queues d‘outils carbures de type HM!
Aufnahme für Induktiv-, Kontakt- und Heißluftschrumpfgeräte geeignet.
Schafttoleranz bei Ø 3, 4 und 5 mm = h 4 , bei Ø 6 – Ø 32 mm = h 6
Toolholders suitable for induction-, contact- and hot air shrink units.
Ø 3, 4, 5 with h 4 -tolerance and Ø 6 – Ø 32 with h 6 -tolerance
Porte-outils convenables pour machines à fretter par induction-,
par contact-, ou par air chaud.
Ø 3, 4, 5 avec h 4 -tolerance et Ø 6 – Ø 32 avec h 6 -tolerance
l 1 = max. Einstecktiefe l 2 = max. Verstellweg
l 1 = max. clamping depth
l 1 = max. profondeur d’insertion l 2 = max. length adjustment range
l 2 = max. course de réglage
KEMMLER
4. 74
