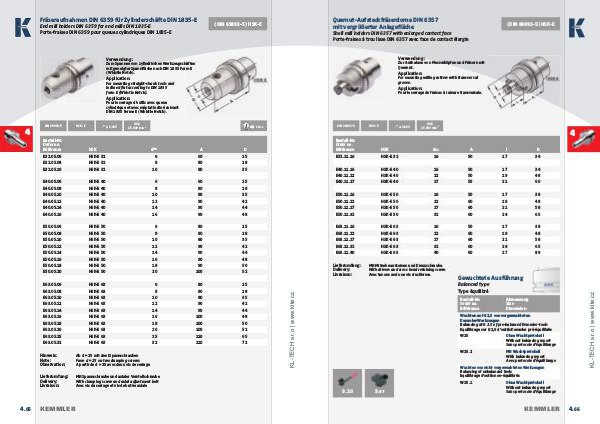

Quernut-Aufsteckfräserdorne DIN 6357
mit vergrößerter Anlagefl äche
(DIN 69893-5) HSK-E
Shell mill holders DIN 6357 with enlarged contact face
Porte-fraises à trou lisse DIN 6357 avec face de contact élargie
Verwendung:
Zur Aufnahme von Messerköpfen und Fräsern mit
Quernut.
Application:
For mounting milling cutters with transversal
groove.
Application:
Pour le serrage de fraises à rainure transversale.
DIN 69893-5
≤ 0,005
HSK - E
G6,3
15.000 min -1
4
Bestell-Nr.
Order no.
Référence HSK d h6 A l D
E32.11.16 HSK-E 32 16 50 17 34
E40.11.16 HSK-E 40 16 50 17 34
E40.11.22 HSK-E 40 22 50 19 48
E40.11.27 HSK-E 40 27 55 21 60
E50.11.16 HSK-E 50 16 50 17 38
E50.11.22 HSK-E 50 22 60 19 48
E50.11.27 HSK-E 50 27 60 21 58
E50.11.32 HSK-E 50 32 60 24 65
E63.11.16 HSK-E 63 16 50 17 38
E63.11.22 HSK-E 63 22 60 19 48
E63.11.27 HSK-E 63 27 60 21 58
E63.11.32 HSK-E 63 32 60 24 65
E63.11.40 HSK-E 63 40 60 27 89
Lieferumfang:
Delivery:
Livraison:
Mit Mitnehmersteinen und Kreuzschraube.
With drivers and cross head retaining screw.
Avec tenons and une vis cruciforme.
Gewuchtete Ausführung
Bestell-Nr.
Order no.
Référence
www.klte.cz
Balanced type
Type équilibré
Abmessung
Size
Dimension
Wuchten auf G 2,5 von vorgewuchteten
Kemmler-Werkzeugen
Balancing at G 2.5 of pre-balanced Kemmler-tools
Equilibrage sur G 2,5 d‘outils Kemmler pré-équilibrés
W25
Ohne Wuchtprotokoll
Without balancing report
Sans protocole d‘équilibrage
W25.2
Mit Wuchtprotokoll
With balancing report
Avec protocole d‘équilibrage
Wuchten von nicht vorgewuchteten Werkzeugen
Balancing of unbalanced tools
Equilibrage d‘outils non-équilibrés
W25.1
9.20
9.47
Ohne Wuchtprotokoll
Without balancing report
Sans protocole d‘équilibrage
KEMMLER
4. 66
