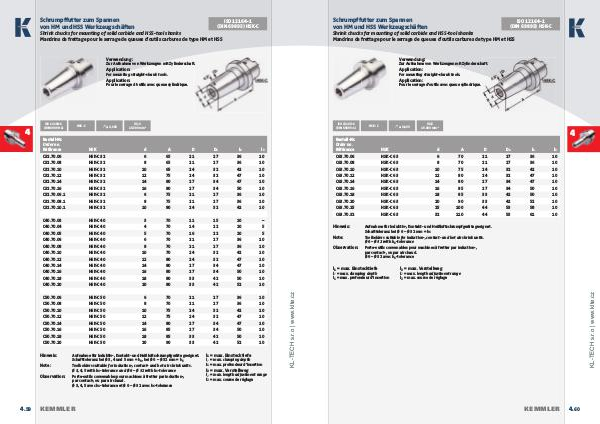

Schrumpffutter zum Spannen
von HM und HSS Werkzeugschäften
ISO 12164-1
(DIN 69893) HSK-C
Shrink chucks for mounting of solid carbide and HSS-tool shanks
Mandrins de frettage pour le serrage de queues d‘outils carbures de type HM et HSS
Verwendung:
Zur Aufnahme von Werkzeugen mit Zylinderschaft.
aft.
Application:
For mounting straight-shank tools.
Application:
Pour le serrage d’outils avec queue cylindrique.
ISO 12164-1
(DIN 69893-1)
≤ 0,003
HSK - C
G6,3
15.000 min -1
4
Bestell-Nr.
Order no.
Référence HSK d A D D 1 l 1 l 2
C63.70.06 HSK-C 63 6 70 21 27 36 10
C63.70.08 HSK-C 63 8 70 21 27 36 10
C63.70.10 HSK-C 63 10 75 24 32 42 10
C63.70.12 HSK-C 63 12 80 24 32 47 10
C63.70.14 HSK-C 63 14 80 27 34 47 10
C63.70.16 HSK-C 63 16 85 27 34 50 10
C63.70.18 HSK-C 63 18 85 33 42 50 10
C63.70.20 HSK-C 63 20 90 33 42 52 10
C63.70.25 HSK-C 63 25 100 44 53 58 10
C63.70.32 HSK-C 63 32 110 44 53 61 10
Note:
Observation:
Aufnahme für Induktiv-, Kontakt- und Heißluftschrumpfgeräte geeignet.
Schafttoleranz bei Ø 6 – Ø 32 mm = h 6
Toolholders suitable for induction-, contact- and hot air shrink units.
Ø 6 – Ø 32 with h 6 -tolerance
Porte-outils convenables pour machines à fretter par induction-,
par contact-, ou par air chaud.
Ø 6 – Ø 32 avec h 6 -tolerance
l 1 = max. Einstecktiefe l 2 = max. Verstellweg
l 1 = max. clamping depth
l 1 = max. profondeur d’insertion l 2 = max. length adjustment range
l 2 = max. course de réglage
