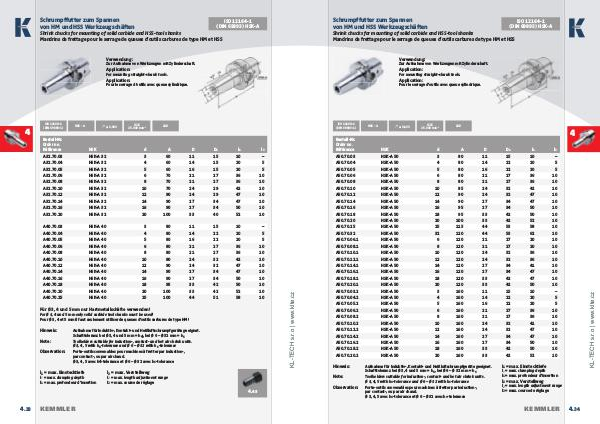

Kemmler - katalog | KL-TECH s.r.o. | www.klte.cz kemmler_katalog | Page 155

Schrumpffutter zum Spannen
von HM und HSS Werkzeugschäften
ISO 12164-1
(DIN 69893) HSK-A
Shrink chucks for mounting of solid carbide and HSS-tool shanks
Mandrins de frettage pour le serrage de queues d‘outils carbures de type HM et HSS
Verwendung:
Zur Aufnahme von Werkzeugen mit Zylinderschaft.
Application:
For mounting straight-shank tools.
Application:
Pour le serrage d’outils avec queue cylindrique.

≤  0,003
HSK - A
G2,5
25.000 min -1
CAD
4
Bestell-Nr.
Order no.
Référence HSK d A D D 1 l 1 A50.70.03 HSK-A 50 3 80 11 15 10 –
A50.70.04 HSK-A 50 4 80 14 22 20 5
A50.70.05 HSK-A 50 5 80 16 22 20 5
A50.70.06 HSK-A 50 6 80 21 27 36 10
A50.70.08 HSK-A 50 8 80 21 27 36 10
A50.70.10 HSK-A 50 10 85 24 32 42 10
A50.70.12 HSK-A 50 12 90 24 32 47 10
A50.70.14 HSK-A 50 14 90 27 34 47 10
A50.70.16 HSK-A 50 16 95 27 34 50 10
A50.70.18 HSK-A 50 18 95 33 42 50 10
A50.70.20 HSK-A 50 20 100 33 42 52 10
A50.70.25 HSK-A 50 25 115 44 53 58 10
A50.70.32 HSK-A 50 32 120 44 53 62 10
A50.70.06.1 HSK-A 50 6 120 21 27 20 10
A50.70.08.1 HSK-A 50 8 120 21 27 20 10
A50.70.10.1 HSK-A 50 10 120 24 32 36 10
A50.70.12.1 HSK-A 50 12 120 24 32 36 10
A50.70.14.1 HSK-A 50 14 120 27 34 41 10
A50.70.16.1 HSK-A 50 16 120 27 34 47 10
A50.70.18.1 HSK-A 50 18 120 33 42 47 10
A50.70.20.1 HSK-A 50 20 120 33 42 50 10
A50.70.03.2 HSK-A 50 3 160 11 15 10 –
A50.70.04.2 HSK-A 50 4 160 14 22 20 5
A50.70.05.2 HSK-A 50 5 160 16 22 20 5
A50.70.06.2 HSK-A 50 6 160 21 27 36 10
A50.70.08.2 HSK-A 50 8 160 21 27 36 10
A50.70.10.2 HSK-A 50 10 160 24 32 41 10
A50.70.12.2 HSK-A 50 12 160 24 32 47 10
A50.70.14.2 HSK-A 50 14 160 27 34 47 10
A50.70.16.2 HSK-A 50 16 160 27 34 50 10
A50.70.18.2 HSK-A 50 18 160 33 42 50 10
A50.70.20.2 HSK-A 50 20 160 33 42 52 10
Hinweis:
Note:
Observation:
Aufnahme für Induktiv-, K
