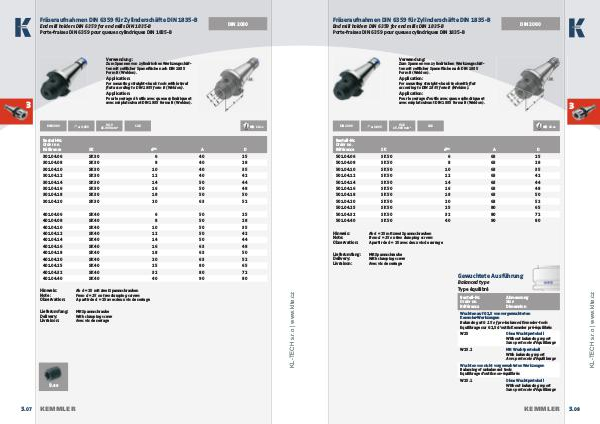

Fräseraufnahmen DIN 6359 für Zylinderschäfte DIN 1835-B
DIN 2080
End mill holders DIN 6359 for end mills DIN 1835-B
Porte-fraises DIN 6359 pour queues cylindriques DIN 1835-B
Verwendung:
Zum Spannen von zylindrischen Werkzeugschäf-
ten mit seitlicher Spannfl äche nach DIN 1835
Form B (Weldon).
Application:
For mounting straight-shank tools with fl at
according to DIN 1835 form B (Weldon).
Application:
Pour le serrage d’outils avec queue cylindrique et
avec méplat suivant DIN 1835 forme B (Weldon).
≤ 0,003
Bestell-Nr.
Order no.
Référence SK
501.04.06 501.04.08
G6,3
15.000 min -1
13. 04
CAD
d H4 A D
SK 50 6 63 25
SK 50 8 63 28
501.04.10 SK 50 10 63 35
501.04.12 SK 50 12 63 42
501.04.14 SK 50 14 63 44
501.04.16 SK 50 16 63 48
501.04.18 SK 50 18 63 50
501.04.20 SK 50 20 63 52
501.04.25 SK 50 25 80 65
501.04.32 SK 50 32 80 72
501.04.40 SK 50 40 90 80
Hinweis:
Note:
Observation: Ab d = 25 mit zwei Spannschrauben
From d = 25 on two clamping screws
A partir de d = 25 avec deux vis de serrage
Lieferumfang:
Delivery:
Livraison: Mit Spannschraube
With clamping screw
Avec vis de serrage
Gewuchtete Ausführung
Balanced type
Type équilibré
Bestell-Nr.
Order no.
Référence
www.klte.cz
DIN 2080
3
Abmessung
Size
Dimension
Wuchten auf G 2,5 von vorgewuchteten
Kemmler-Werkzeugen
Balancing at G 2.5 of pre-balanced Kemmler-tools
Equilibrage sur G 2,5 d‘outils Kemmler pré-équilibrés
W25
Ohne Wuchtprotokoll
Without balancing report
Sans protocole d‘équilibrage
W25.2
Mit Wuchtprotokoll
With balancing report
Avec protocole d‘équilibrage
Wuchten von nicht vorgewuchteten Werkzeugen
Balancing of unbalanced tools
Equilibrage d‘outils non-équilibrés
W25.1
Ohne Wuchtprotokoll
Without balancing report
Sans protocole d‘équilibrage
KEMMLER
3. 08
