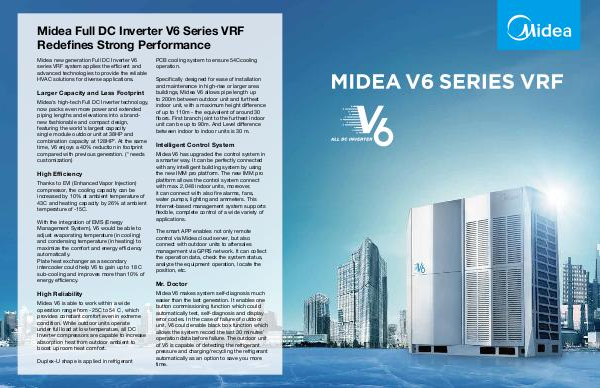

Midea Full DC Inverter V6 Series VRF
Redefines Strong Performance
Midea new generation Full DC Inverter V6
series VRF system applies the efficient and
advanced technologies to provide the reliable
HVAC solutions for diverse applications.
Larger Capacity and Less Footprint
Midea’s high-tech Full DC Inverter technology,
now packs even more power and extended
piping lengths and elevations into a brand-
new fashionable and compact design,
featuring the world’s largest capacity
single module outdoor unit at 38HP and
combination capacity at 128HP*. At the same
time, V6 enjoys a 40% reduction in footprint
compared with previous generation. (* needs
customization)
High Efficiency
Thanks to EVI (Enhanced Vapor Injection)
compressor, the cooling capacity can be
increased by 10% at ambient temperature of
43C and heating capacity by 26% at ambient
temperature of -15C.
With the integration of EMS (Energy
Management System), V6 would be able to
adjust evaporating temperature (in cooling)
and condensing temperature (in heating) to
maximize the comfort and energy efficiency
automatically.
Plate heat exchanger as a secondary
intercooler could help V6 to gain up to 18 C
sub-cooling and improves more than 10% of
energy efficiency.
High Reliability
Midea V6 is able to work within a wide
operation range from -25C to 54 C , which
provides constant comfort even in extreme
condition. While outdoor units operate
under full load at low temperature, all DC
Inverter compressors are capable to increase
absorption heat from outdoor ambient to
boost up room heat comfort.
Duplex-U shape is applied in refrigerant
70
HVACR Leaders • May 2017
PCB cooling system to ensure 54Ccooling
operation.
Specifically designed for ease of installation
and maintenance in high-rise or larger area
buildings, Midea V6 allows pipe length up
to 200m between outdoor unit and furthest
indoor unit, with a maximum height difference
of up to 110m - the equivalent of around 30
floors. First branch joint to the furthest indoor
unit can be up to 90m. And Level difference
between indoor to indoor units is 30 m.
Intelligent Control System
Midea V6 has upgraded the control system in
a smarter way. It can be perfectly connected
with any intelligent building system by using
the new IMM pro platform. The new IMM pro
platform allows the control system connect
with max. 2,048 indoor units, moreover,
it can connect with also fire alarms, fans,
water pumps, lighting and ammeters. This
Internet-based management system supports
flexible, complete control of a wide variety of
applications.
The smart APP enables not only remote
control via Midea cloud server, but also
connect with outdoor units to aftersales
management via GPRS network. It can collect
the operation data, check the system status,
analyze the equipment operation, locate the
position, etc.
Mr. Doctor
Midea V6 makes system self-diagnosis much
easier than the last generation. It enables one
button commissioning function which could
automatically test, self-diagnosis and display
error codes. In the case of failure of outdoor
unit, V6 could enable black box function which
allows the system record the last 30 minutes’
operation data before failure. The outdoor unit
of V6 is capable of detecting the refrigerant
pressure and charging/recycling the refrigerant
automatically as an option to save you more
time.
