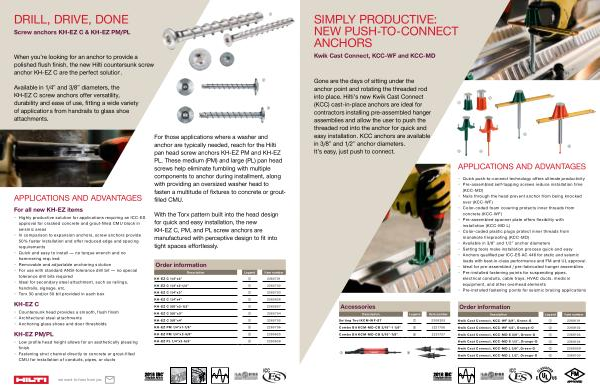

SIMPLY PRODUCTIVE:
NEW PUSH-TO-CONNECT
ANCHORS
Kwik Cast Connect, KCC-WF and KCC-MD
Gone are the days of sitting under the
anchor point and rotating the threaded rod
into place. Hilti’s new Kwik Cast Connect
(KCC) cast-in-place anchors are ideal for
contractors installing pre-assembled hanger
assemblies and allow the user to push the
threaded rod into the anchor for quick and
easy installation. KCC anchors are available
in 3/8” and 1/2” anchor diameters.
It’s easy, just push to connect.
1
3
4
2
5
6
APPLICATIONS AND ADVANTAGES
• Quick push-to-connect technology offers ultimate productivity
• Pre-assembled self-tapping screws reduce installation time
(KCC-MD)
• Nails through the head prevent anchor from being knocked
over (KCC-WF)
• Color-coded foam covering protects inner threads from
concrete (KCC-WF)
• Pre-assembled spanner plate offers flexibility with
installation (KCC-MD L)
• Color-coded plastic plugs protect inner threads from
monokote fireproofing (KCC-MD)
• Available in 3/8” and 1/2” anchor diameters
• Setting tools make installation process quick and easy
• Anchors qualified per ICC-ES AC 446 for static and seismic
loads with best-in-class performance and FM and UL approval
• Ideal for pre-assembled / pre-fabricated hanger assemblies
• Pre-installed fastening points for suspending pipes,
electrical conduits, cable trays, HVAC ducts, medical
equipment, and other overhead elements
• Pre-installed fastening points for seismic bracing applications
Accessories
Description Legend Item number
Setting Tool KCM-WF-ST 7 2206205
Combo Bit KCM-MD-CB 3/16”-1 1/8” 8 2221706
Combo Bit KCM-MD-CB 3/16”-7/8” 8 2221707
Order information
Description Legend Item number
Kwik Cast Connect, KCC-WF 3/8", Green-G 1 2268101
Kwik Cast Connect, KCC-WF 1/2", Orange-O 2 2268102
Kwik Cast Connect, KCC-MD S 3/8", Green-G 3 2268103
7
8
Kwik Cast Connect, KCC-MD S 1/2", Orange-O 4 2268104
Kwik Cast Connect, KCC-MD L 3/8", Green-G 5 2268009
Kwik Cast Connect, KCC-MD L 1/2", Orange-O 6 2268100
®
2018 IBC
Compliant Anchor
FM
��������
��������������������������
