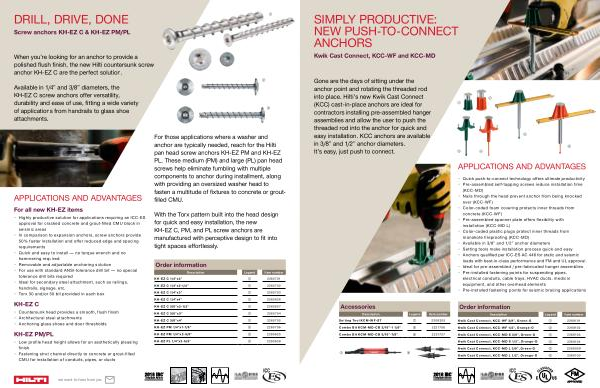

DRILL, DRIVE, DONE
Screw anchors KH-EZ C & KH-EZ PM/PL
1
When you’re looking for an anchor to provide a
polished flush finish, the new Hilti countersunk screw
anchor KH-EZ C are the perfect solution.
Available in 1/4” and 3/8” diameters, the
KH-EZ C screw anchors offer versatility,
durability and ease of use, fitting a wide variety
of applications from handrails to glass shoe
attachments.
2
3
APPLICATIONS AND ADVANTAGES
For all new KH-EZ items
• Highly productive solution for applications requiring an ICC-ES
approval for cracked concrete and grout-filled CMU block in
seismic areas
• In comparison to expansion anchors, screw anchors provide
50% faster installation and offer reduced edge and spacing
requirements
• Quick and easy to install — no torque wrench and no
hammering required
• Removable and adjustable anchoring solution
• For use with standard ANSI-tolerance drill bit — no special
tolerance drill bits required
• Ideal for secondary steel attachment, such as railings,
handrails, signage, etc.
• Torx 30 and/or 50 bit provided in each box
KH-EZ C
• Countersunk head provides a smooth, flush finish
• Architectural steel attachments
• Anchoring glass shoes and door thresholds
KH-EZ PM/PL
• Low profile head height allows for an aesthetically pleasing
finish
• Fastening strut channel directly to concrete or grout-filled
CMU for installation of conduits, pipes, or ducts
For those applications where a washer and
anchor are typically needed, reach for the Hilti
pan head screw anchors KH-EZ PM and KH-EZ
PL. These medium (PM) and large (PL) pan head
screws help eliminate fumbling with multiple
components to anchor during installment, along
with providing an oversized washer head to
fasten a multitude of fixtures to concrete or groutfilled
CMU.
With the Torx pattern built into the head design
for quick and easy installation, the new
KH-EZ C, PM, and PL screw anchors are
manufactured with perceptive design to fit into
tight spaces effortlessly.
Order information
Description Legend Item number
KH-EZ C 1/4"x2" 1 2265701
KH-EZ C 1/4"x2-1/2" 1 2265702
KH-EZ C 1/4"x3" 1 2265703
KH-EZ C 1/4"x4" 1 2265626
KH-EZ C 3/8"x2-1/2" 1 2265627
KH-EZ C 3/8"x3" 1 2265704
KH-EZ C 3/8"x4" 1 2265705
KH-EZ PM 1/4"x1-7/8" 2 2265706
KH-EZ PM 1/4"x2-5/8" 2 2265625
KH-EZ PL 1/4"x2-5/8" 3 2265628
we want to hear from you
®
2018 IBC
Compliant Anchor
