INETEC Institute for Nuclear Technology INETEC | Page 60

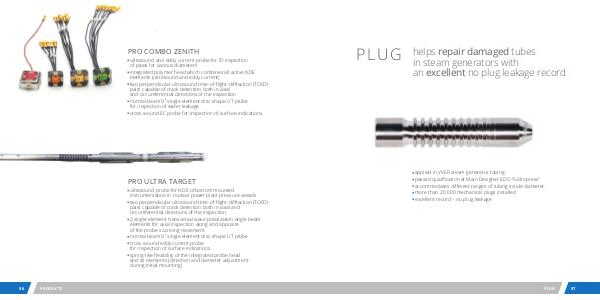

PRO COMBO ZENITH
ultrasound and eddy current probe for ID inspection
of pipes for various diameters
integrated polymer head which combines all active NDE
elements (ultrasound and eddy current)
two perpendicular ultrasound time-of-flight-diffraction (TOFD)
pairs capable of crack detection both in axial
and circumferential directions of the inspection
normal beam 0˚ single element disc-shape UT probe
for inspection of water leakage
cross wound EC probe for inspection of surface indications
PRO ULTRA TARGET
ultrasound probe for NDE of bottom mounted
instrumentation in nuclear power plant pressure vessels
two perpendicular ultrasound time-of-flight-diffraction (TOFD)
pairs capable of crack detection both in axial and
circumferential directions of the inspection
2 single element transversal wave polarization angle beam
elements for axial inspection along and opposite
of the probe scanning movement
normal beam 0˚ single element disc-shape UT probe
cross wound eddy current probe
for inspection of surface indications
spring-like flexibility of the integrated probe head
and its elements (direction and diameter adjustment
during initial mounting)
56
PRODUCTS
