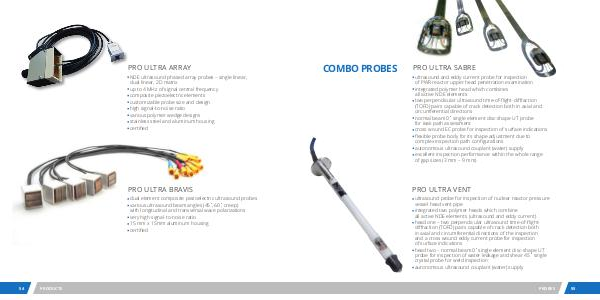

COMBO PROBES
PRO ULTRA SABRE
ultrasound and eddy current probe for inspection
of PWR reactor upper head penetration examination
integrated polymer head which combines
all active NDE elements
two perpendicular ultrasound time-of-flight-diffraction
(TOFD) pairs capable of crack detection both in axial and
circumferential directions
normal beam 0˚ single element disc-shape UT probe
for leak path assessment
cross wound EC probe for inspection of surface indications
flexible probe body for its shape adjustment due to
complex inspection path configurations
autonomous ultrasound couplant (water) supply
excellent inspection performance within the whole range
of gap sizes (3 mm – 9 mm)
PRO ULTRA VENT
ultrasound probe for inspection of nuclear reactor pressure
vessel head vent pipe
integrated two polymer heads which combine
all active NDE elements (ultrasound and eddy current)
head one – two perpendicular ultrasound time-of-flight-
diffraction (TOFD) pairs capable of crack detection both
in axial and circumferential directions of the inspection
and a cross wound eddy current probe for inspection
of surface indications
head two – normal beam 0˚ single element disc-shape UT
probe for inspection of water leakage and shear 45˚ single
crystal probe for weld inspection
autonomous ultrasound couplant (water) supply
