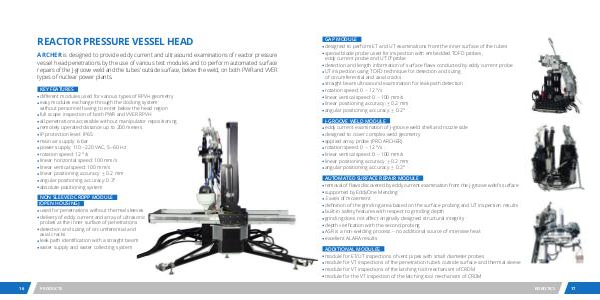

GAP MODULE designed to perform ET and UT examinations from the inner surface of the tubes special blade probe used for inspection with embedded TOFD probes, eddy current probe and UT 0°probe detection and length information of surface flaws conducted by eddy current pro be UT inspection using TOFD technique for detection and sizing of circumferential and axial cracks straight beam ultrasound examination for leak path detection rotation speed: 0 − 12 °/s linear vertical speed: 0 − 100 mm/s linear positioning accuracy: ± 0.2 mm angular positioning accuracy: ± 0.2° J-GROOVE WELD MODULE eddy current examination of J-groove weld shell and nozzle side designed to cover complex weld geometry applied array probe (PRO ARCHER) rotation speed: 0 − 12 °/s linear vertical speed: 0 − 100 mm/s linear positioning accuracy: ± 0.2 mm angular positioning accuracy: ± 0.2° AUTOMATED SURFACE REPAIR MODULE removal of flaws discovered by eddy current examination from the J-groove weld’s surface supported by EddyOne Mending 3 axes of movement definition of the grinding area based on the surface probing and UT inspection results built-in safety features with respect to grinding depth grinding does not affect originally designed structural integrity depth verification with the second probing ASR is a non-welding process − no additional source of intensive heat excellent ALARA results ADDITIONAL MODULES module for ET/UT inspections of vent pipes with small diameter probes module for VT inspections of the penetration tube’s outside surface and thermal sleeve module for VT inspections of the latching tool mechanism of CRDM module for the VT inspection of the latching tool mechanism of CRDM ROBOTICS 17
