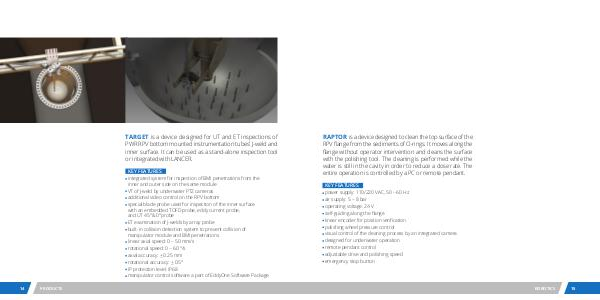

RAPTOR is a device designed to clean the top surface of the
RPV flange from the sediments of O-rings. It moves along the
flange without operator intervention and cleans the surface
with the polishing tool. The cleaning is performed while the
water is still in the cavity in order to reduce a dose rate. The
entire operation is controlled by a PC or remote pendant.
KEY FEATURES
power supply: 110/220 VAC, 50 − 60 Hz
air supply: 5 − 8 bar
operating voltage: 24 V
self-guiding along the flange
linear encoder for position verification
polishing wheel pressure control
visual control of the cleaning process by an integrated camera
designed for underwater operation
remote pendant control
adjustable drive and polishing speed
emergency stop button
