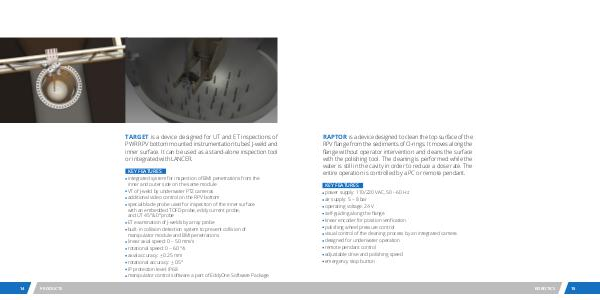

TARGET is a device designed for UT and ET inspections of
PWR RPV bottom mounted instrumentation tubes’ J-weld and
inner surface. It can be used as a stand-alone inspection tool
or integrated with LANCER.
KEY FEATURES
integrated system for inspection of BMI penetrations from the
inner and outer side on the same module
VT of J-weld by underwater PTZ cameras
additional video control on the RPV bottom
special blade probe used for inspection of the inner surface
with an embedded TOFD probe, eddy current probe,
and UT 45°& 0°probe
ET examination of J-welds by array probe
built-in collision detection system to prevent collision of
manipulator module and BMI penetrations
linear axial speed: 0 − 50 mm/s
rotational speed: 0 − 60 °/s
axial accuracy: ± 0.25 mm
rotational accuracy: ± 0.5°
IP protection level: IP68
manipulator control software a part of EddyOne Software Package
