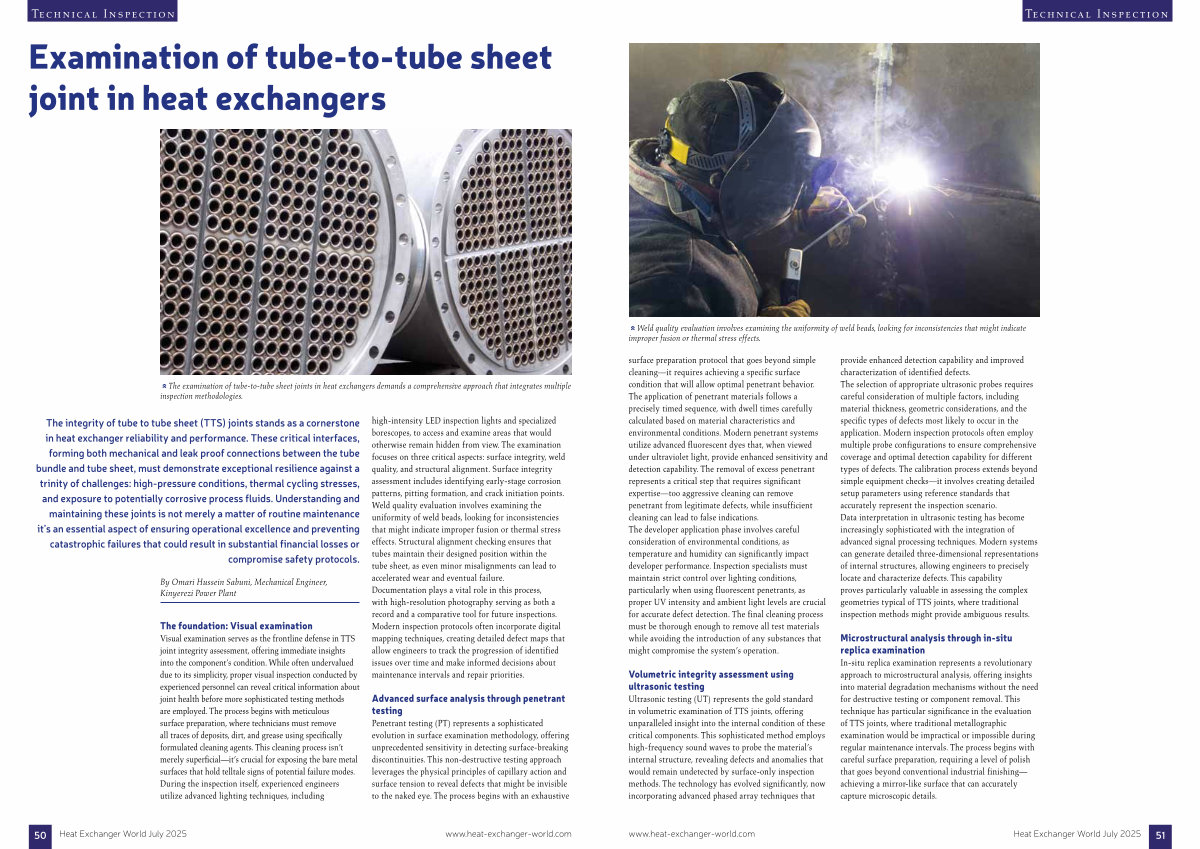

Technical Inspection
Weld quality evaluation involves examining the uniformity of weld beads, looking for inconsistencies that might indicate improper fusion or thermal stress effects.
surface preparation protocol that goes beyond simple cleaning— it requires achieving a specific surface condition that will allow optimal penetrant behavior. The application of penetrant materials follows a precisely timed sequence, with dwell times carefully calculated based on material characteristics and environmental conditions. Modern penetrant systems utilize advanced fluorescent dyes that, when viewed under ultraviolet light, provide enhanced sensitivity and detection capability. The removal of excess penetrant represents a critical step that requires significant expertise— too aggressive cleaning can remove penetrant from legitimate defects, while insufficient cleaning can lead to false indications. The developer application phase involves careful consideration of environmental conditions, as temperature and humidity can significantly impact developer performance. Inspection specialists must maintain strict control over lighting conditions, particularly when using fluorescent penetrants, as proper UV intensity and ambient light levels are crucial for accurate defect detection. The final cleaning process must be thorough enough to remove all test materials while avoiding the introduction of any substances that might compromise the system’ s operation.
Volumetric integrity assessment using ultrasonic testing Ultrasonic testing( UT) represents the gold standard in volumetric examination of TTS joints, offering unparalleled insight into the internal condition of these critical components. This sophisticated method employs high-frequency sound waves to probe the material’ s internal structure, revealing defects and anomalies that would remain undetected by surface-only inspection methods. The technology has evolved significantly, now incorporating advanced phased array techniques that
provide enhanced detection capability and improved characterization of identified defects. The selection of appropriate ultrasonic probes requires careful consideration of multiple factors, including material thickness, geometric considerations, and the specific types of defects most likely to occur in the application. Modern inspection protocols often employ multiple probe configurations to ensure comprehensive coverage and optimal detection capability for different types of defects. The calibration process extends beyond simple equipment checks— it involves creating detailed setup parameters using reference standards that accurately represent the inspection scenario. Data interpretation in ultrasonic testing has become increasingly sophisticated with the integration of advanced signal processing techniques. Modern systems can generate detailed three-dimensional representations of internal structures, allowing engineers to precisely locate and characterize defects. This capability proves particularly valuable in assessing the complex geometries typical of TTS joints, where traditional inspection methods might provide ambiguous results.
Microstructural analysis through in-situ replica examination In-situ replica examination represents a revolutionary approach to microstructural analysis, offering insights into material degradation mechanisms without the need for destructive testing or component removal. This technique has particular significance in the evaluation of TTS joints, where traditional metallographic examination would be impractical or impossible during regular maintenance intervals. The process begins with careful surface preparation, requiring a level of polish that goes beyond conventional industrial finishing— achieving a mirror-like surface that can accurately capture microscopic details. www. heat-exchanger-world. com Heat Exchanger World July 2025
51
