Technical Inspection

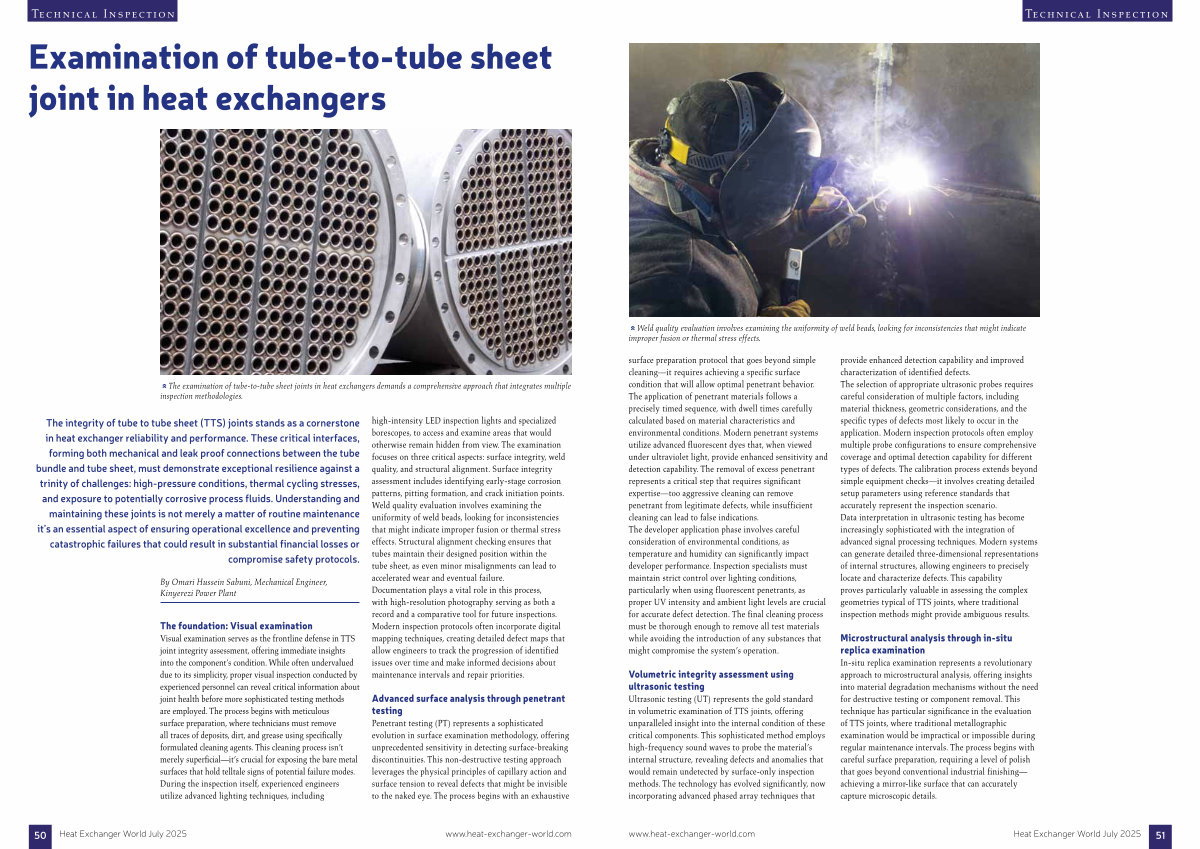

Examination of tube-to-tube sheet joint in heat exchangers
The examination of tube-to-tube sheet joints in heat exchangers demands a comprehensive approach that integrates multiple inspection methodologies.
The integrity of tube to tube sheet( TTS) joints stands as a cornerstone in heat exchanger reliability and performance. These critical interfaces, forming both mechanical and leak proof connections between the tube bundle and tube sheet, must demonstrate exceptional resilience against a trinity of challenges: high-pressure conditions, thermal cycling stresses, and exposure to potentially corrosive process fluids. Understanding and maintaining these joints is not merely a matter of routine maintenance it’ s an essential aspect of ensuring operational excellence and preventing catastrophic failures that could result in substantial financial losses or compromise safety protocols.
By Omari Hussein Sabuni, Mechanical Engineer, Kinyerezi Power Plant
The foundation: Visual examination Visual examination serves as the frontline defense in TTS joint integrity assessment, offering immediate insights into the component’ s condition. While often undervalued due to its simplicity, proper visual inspection conducted by experienced personnel can reveal critical information about joint health before more sophisticated testing methods are employed. The process begins with meticulous surface preparation, where technicians must remove all traces of deposits, dirt, and grease using specifically formulated cleaning agents. This cleaning process isn’ t merely superficial— it’ s crucial for exposing the bare metal surfaces that hold telltale signs of potential failure modes. During the inspection itself, experienced engineers utilize advanced lighting techniques, including high-intensity LED inspection lights and specialized borescopes, to access and examine areas that would otherwise remain hidden from view. The examination focuses on three critical aspects: surface integrity, weld quality, and structural alignment. Surface integrity assessment includes identifying early-stage corrosion patterns, pitting formation, and crack initiation points. Weld quality evaluation involves examining the uniformity of weld beads, looking for inconsistencies that might indicate improper fusion or thermal stress effects. Structural alignment checking ensures that tubes maintain their designed position within the tube sheet, as even minor misalignments can lead to accelerated wear and eventual failure. Documentation plays a vital role in this process, with high-resolution photography serving as both a record and a comparative tool for future inspections. Modern inspection protocols often incorporate digital mapping techniques, creating detailed defect maps that allow engineers to track the progression of identified issues over time and make informed decisions about maintenance intervals and repair priorities.
Advanced surface analysis through penetrant testing Penetrant testing( PT) represents a sophisticated evolution in surface examination methodology, offering unprecedented sensitivity in detecting surface-breaking discontinuities. This non-destructive testing approach leverages the physical principles of capillary action and surface tension to reveal defects that might be invisible to the naked eye. The process begins with an exhaustive
50 Heat Exchanger World July 2025 www. heat-exchanger-world. com
