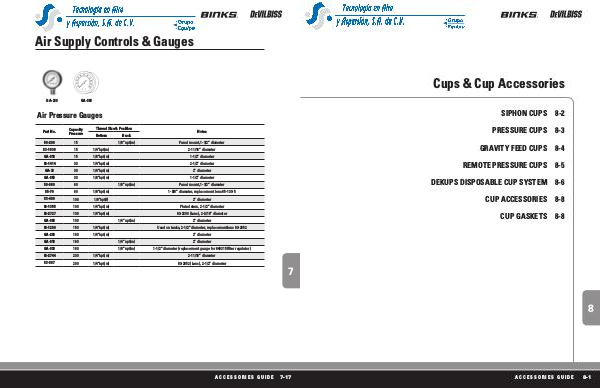

Air Supply Controls & Gauges
GA-288
GA-385
Air Pressure Gauges
Part No. Capacity
Pressure
Thread Size & Position
Bottom
Back
Notes
59-299 15 83-1636 15 1/4”npt(m) 2-11/16” diameter
GA-313 15 1/8”npt(m) 1-1/2” diameter
83-1414 30 1/4”npt(m) 2-1/2” diameter
GA-73 30 1/4”npt(m) 2” diameter
GA-355 30 1/8”npt(m) 1-1/2” diameter
59-369 60 85-70 60
1/8”npt(m)
1/8”npt(m)
1/8”npt(m)
Panel mount, 1-1/2” diameter
Panel mount, 1-1/2” diameter
1-5/8” diameter, replacement lens 85-130-5
83-490 100 1/8”npt(f) 2” diameter
83-1355 100 1/4”npt(m) Plated stem, 2-1/2” diameter
83-2727 100 1/4”npt(m) 83-2290 (Lens), 2-3/16” diameter
GA-385 100 83-1290 150 1/4”npt(m) Used on tanks, 2-1/2” diameter, replacement lens 83-2052
GA-288 160 1/4”npt(m) 2” diameter
GA-316 160 1/4”npt(m) 2” diameter
GA-338 160 1/8”npt(m) 1-1/2” diameter (replacement gauge for 849315 filter regulator)
83-2744 200 1/4”npt(m) 2-11/16” diameter
83-387 200 1/4”npt(m) 83-2052 (Lens), 2-1/2” diameter
1/4”npt(m)
2” diameter
