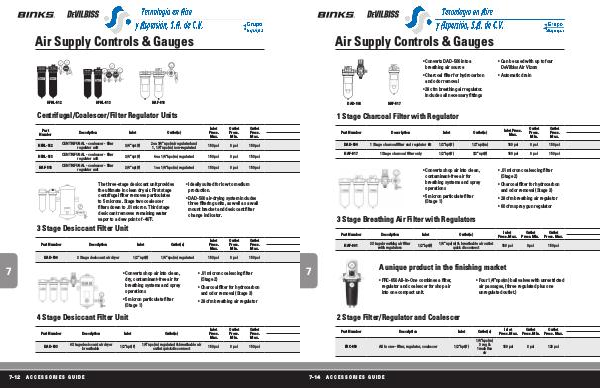

Air Supply Controls & Gauges
• Converts DAD-500 into a
breathing air source • Can be used with up to four
DeVilbiss Air Vizors
• Charcoal filter for hydrocarbon
and odor removal • Automatic drain
• 28 cfm breathing air regulator.
Includes all necessary fittings
DAD-504
HAF-517
1 Stage Charcoal Filter with Regulator
Part Number Description Inlet Outlet(s) Inlet Press.
Max. Outlet
Press.
Min. Outlet
Press.
Max.
DAD-504 1 Stage charcoal filter and regulator kit 1/2”npt(f) 1/2”npt(m) 150 psi 0 psi 150 psi
HAF-517 1 Stage charcoal filter only 1/2”npt(f) 1/2”npt(f) 150 psi 0 psi 150 psi
• Converts shop air into clean,
contaminant-free air for
breathing systems and spray
operations • .01 micron coalescing filter
(Stage 2)
• 5 micron particulate filter
(Stage 1) • 28 cfm breathing air regulator
• Charcoal filter for hydrocarbon
and odor removal (Stage 3)
• 60 cfm spray gun regulator
3 Stage Breathing Air Filter with Regulators
Part Number Description Inlet Outlet(s) Inlet
Press. Max. Outlet
Press. Min. Outlet
Press. Max.
HAF-601 3 Stage breathing air filter
with regulators 1/2”npt(f) 1/4”nps(m) & breathable air outlet
quick disconnect 150 psi 0 psi 150 psi
A unique product in the finishing market
7
• FRC-650 All-In-One combines a filter,
regulator and coalescer for shop air
into one compact unit.
• Four 1/4”nps(m) ball valves with unrestricted
air passages, (three regulated plus one
unregulated outlet.)
2 Stage Filter/Regulator and Coalescer
7-14
Part Number Description Inlet Outlet(s) Inlet
Press. Max. Outlet
Press. Min. Outlet
Press. Max.
FRC-650 All in one – filter, regulator, coalescer 1/2”npt(f) 1/4”nps(m)
3 reg &
1 main line
air 150 psi 0 psi 125 psi
ACCESSORIES GUIDE
