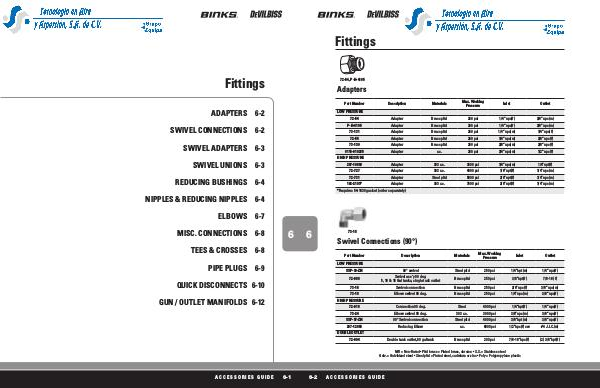

Fittings
72-54, P-H-4105
Adapters
Part Number
Description Materials Max. Working
Pressure Inlet Outlet
LOW PRESSURE
72-54 Adapter Brass pltd 250 psi 1/4”nps(f) 3/8”nps(m)
P-H-4105 Adapter Brass pltd 250 psi 1/4”nps(f) 3/8”nps(m)
73-131 Adapter Brass pltd 250 psi 1/4”nps(m) 1/4”nps(f)
72-55 Adapter Brass pltd 250 psi 1/4”nps(m) 3/8”nps(f)
73-130 Adapter Brass pltd 250 psi 3/8”nps(m) 3/8”nps(f)
0115-010235 Adapter s.s. 250 psi 3/4”nps(m) 1/2”nps(f)
207-10699 Adapter 303 s.s. 3500 psi 1/4”nps(m) 1/4”npt(f)
72-727 Adapter 303 s.s. 4000 psi 1/8”npt(f) 1/4”nps(m)
72-731 Adapter Steel pltd 5000 psi 3/8”npt(f) 1/4”nps(m)
102-2193* Adapter 303 s.s. 7500 psi 3/8”npt(f) 1/4”nps(m)
HIGH PRESSURE
*Requires 54-1439 gasket (order separately)
6
73-18
Swivel Connections (90°)
Description Materials Max. Working
Pressure Inlet Outlet
SSP-30-ZN 90° swivel Steel pltd 250 psi 1/4”npt(m) 1/4”nps(f)
72-989 Swivel ass'y 90 deg.
5, 10 & 15 Gal tanks, single tank outlet Brass pltd 250 psi 3/8”npt(f) 7/8-18 (f)
Part Number
LOW PRESSURE
73-16 Swivel connection Brass pltd 250 psi 3/8”nps(f) 3/8”nps(m)
73-18 Elbow swivel 90 deg. Brass pltd 250 psi 1/4”nps(m) 3/8”nps(f)
HIGH PRESSURE
72-918 Connection 90 deg. Steel 4000 psi 1/4”npt(f) 1/4”nps(f)
73-24 Elbow swivel 90 deg. 303 s.s. 3000 psi 3/8”nps(m) 3/8”nps(f)
SSP-57-ZN 90° Swivel connection Steel pltd 4000 psi 3/8”npt(m) 3/8”nps(f)
207-12085 Reducing Elbow s.s. 6000 psi 1/2”nps(f) sw #4 J.I.C.(m)
Double tank outlet, 60 gal tank Brass pltd 200 psi 7/8-18”nps(f) (2) 3/8”npt(f)
DOUBLE OUTLET
72-994
N/R = Non-Rated • Pltd brass = Plated brass, chrome • S.S. = Stainless steel
Galv. = Galvinized steel • Steel pltd = Plated steel, cadmium or zinc • Poly = Polypropylene plastic
