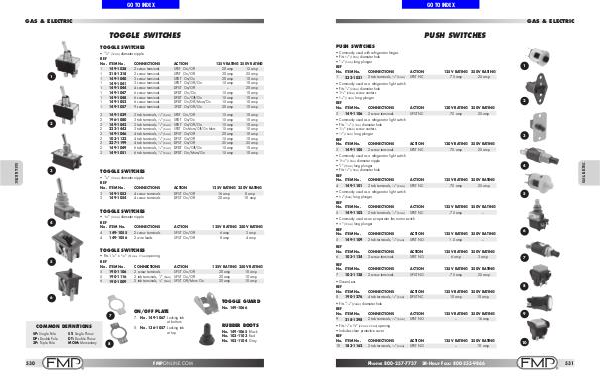

GAS & ELECTRIC push switches Push Switches • Commonly used as a refrigerator light switch • Fits 7 ⁄ 8 " (22mm) diameter hole • 1 3 ⁄ 8 " (35mm) screw centers • 9 ⁄ 16 " (14mm) long plunger REF No. ITEM No. CONNECTIONS 2 149-1106 2 screw terminals • Commonly used as a refrigerator light switch • Fits 11 ⁄ 16 " (17mm) diameter hole • 1 1 ⁄ 2 " (38mm) screw centers • 1 ⁄ 2 " (13mm) long plunger REF No. ITEM No. CONNECTIONS 3 149-1105 2 screw terminals • Commonly used as a refrigerator light switch • 1 5 ⁄ 32 " (12mm) diameter nipple • 3 ⁄ 8 " (10mm) long plunger • Fits 3 ⁄ 4 " (19mm) diameter hole REF No. ITEM No. CONNECTIONS 4 149-1101 2 tab terminals, 1 ⁄ 4 " (6mm) • Commonly used as a refrigerator light switch • 5 ⁄ 16 " (8mm) long plunger REF No. ITEM No. CONNECTIONS 5 149-1102 2 tab terminals, 1 ⁄ 4 " (6mm) 1 ACTION SPST NC 125V RATING 250V RATING .75 amp .25 amp 2 ACTION SPST NC 120V RATING 250V RATING .75 amp .25 amp 3 ACTION SPST NC 120V RATING 250V RATING .75 amp .25 amp 4 ACTION SPST NC • Commonly used with refrigerator hinges • Fits 3 ⁄ 4 " (19mm) diameter hole • 3 ⁄ 16 " (5mm) long plunger REF No. ITEM No. CONNECTIONS 1 232-1031 2 tab terminals, 1 ⁄ 4 " (6mm) 125V RATING 250V RATING .75 amp .25 amp 5 ACTION SPST NC 125V RATING 250V RATING .75 amp – • Commonly used as an evaporator fan motor switch • 1 ⁄ 2 " (13mm) long plunger REF No. ITEM No. CONNECTIONS ACTION 5 149-1109 2 tab terminals, 1 ⁄ 4 " (6mm) SPST NO 125V RATING 250V RATING 1.5 amp – REF No. ITEM No. 6 103-1124 CONNECTIONS 2 screw terminals ACTION SPST NO 125V RATING 250V RATING 6 amp 3 amp REF No. ITEM No. 7 103-1128 CONNECTIONS 2 screw terminals ACTION SPST NO 125V RATING 250V RATING .75 amp .25 amp • Green Lens REF No. ITEM No. 8 190-1276 CONNECTIONS 4 tab terminals, 1 ⁄ 4 " (6mm) ACTION DPST NC 125V RATING 250V RATING 10 amp 10 amp • Fits 15 ⁄ 16 " (24mm) diameter hole REF No. ITEM No. CONNECTIONS 9 218-1298 2 tab terminals, 1 ⁄ 4 " ACTION SPST NO 125V RATING 250V RATING – .16 amp 9 (6mm) • Fits 7 ⁄ 8 " x 7 ⁄ 8 " (22mm x 22mm) opening • Includes clear protective cover REF No. ITEM No. CONNECTIONS 10 183-1162 2 tab terminals, 1 ⁄ 4 " (6mm) ACTION SPST NO 125V RATING 250V RATING – 10 amp 10 6 7 8 Phone: 800-257-7737 24-Hour Fax: 800-255-9866 531
