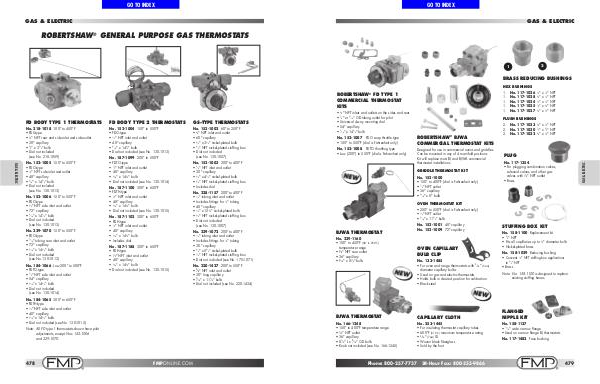

FMP-COMERSAMX CATALOGO FMP | Page 536

GAS & ELECTRIC
Robertshaw ® General Purpose Gas Thermostats
FD Body Type 1 Thermostats FD Body Type 2 Thermostats GS-Type Thermostats
No. 218-1018 100° to 450°F
• FDS-type
• 3 ⁄ 8 " NPT rear and side inlet and side outlet
• 30" capillary
• 3 ⁄ 8 " x 3 7 ⁄ 8 " bulb
• Dial not included
(see No. 218-1059) No. 152-1004 150° to 550°F
• FDO-type
• 1 ⁄ 2 " NPT inlet and outlet
• 48" capillary
• 3 ⁄ 16 " x 14 3 ⁄ 4 " bulb
• Dial not included (see No. 130-1013) No. 152-1002 60° to 250°F
• 3 ⁄ 8 " NPT inlet and outlet
• 60" capillary
• 3 ⁄ 8 " x 3 3 ⁄ 4 " nickel-plated bulb
• 3 ⁄ 8 " NPT nickel-plated stuffing box
• Dial not included
(see No. 130-1057)
No. 152-1005 150° to 550°F
• FDO-type
• 1 ⁄ 2 " NPT side inlet and outlet
• 48" capillary
• 3 ⁄ 16 " x 14 3 ⁄ 4 " bulb
• Dial not included
(see No. 130-1013)
No. 152-1006 150° to 550°F
• FDO-type
• 3 ⁄ 8 " NPT side inlet and outlet
• 72" capillary
• 3 ⁄ 16 " x 14 3 ⁄ 4 " bulb
• Dial not included
(see No. 130-1013)
No. 229-1070 150° to 550°F
• FDO-type
• 7 ⁄ 16 " tubing rear inlet and outlet
• 72" capillary
• 3 ⁄ 16 " x 14 3 ⁄ 4 " bulb
• Dial not included
(see No. 130-1013)
No. 184-1066 Low 200° to 500°F
• FDTO-type
• 1 ⁄ 2 " NPT side inlet and outlet
• 54" capillary
• 3 ⁄ 16 " x 14 3 ⁄ 4 " bulb
• Dial not included
(see No. 130-1014)
No. 187-1099 200° to 500°F
• FDTO-type
• 1 ⁄ 2 " NPT inlet and outlet
• 48" capillary
• 3 ⁄ 16 " x 14 3 ⁄ 4 " bulb
• Dial not included (see No. 130-1014)
No. 187-1100 300° to 650°F
• FDTH-type
• 1 ⁄ 2 " NPT inlet and outlet
• 48" capillary
• 3 ⁄ 16 " x 14 3 ⁄ 4 " bulb
• Dial not included (see No. 130-1015)
No. 187-1102 300° to 650°F
• FDH-type
• 1 ⁄ 2 " NPT inlet and outlet
• 48" capillary
• 3 ⁄ 16 " x 14 3 ⁄ 4 " bulb
• Includes dial
No. 187-1188 300° to 650°F
• FDH-type
• 1 ⁄ 2 " NPT inlet and outlet
• 48" capillary
• 3 ⁄ 16 " x 14 3 ⁄ 4 " bulb
• Dial not included (see No. 130-1015)
No. 184-1065 300° to 650°F
• FDTH-type
• 1 ⁄ 2 " NPT side inlet and outlet
• 48" capillary
• 3 ⁄ 16 " x 14 3 ⁄ 4 " bulb
• Dial not included (see No. 130-1015)
Note: All FD type 1 thermostats shown have pilot
adjustments, except Nos. 152-1006
and 229-1070.
478
fmponline.com
No. 152-1003 200° to 400°F
• 3 ⁄ 8 " NPT inlet and outlet
• 30" capillary
• 3 ⁄ 8 " x 4 7 ⁄ 8 " nickel-plated bulb
• 3 ⁄ 8 " NPT nickel-plated stuffing box
• Includes dial
No. 228-1157 200° to 400°F
• 1 ⁄ 4 " tubing inlet and outlet
• Includes fittings for 1 ⁄ 4 " tubing
• 48" capillary
• 1 ⁄ 4 " x 12 5 ⁄ 8 " nickel-plated bulb
• 3 ⁄ 8 " NPT nickel-plated stuffing box
• Dial not included
(see No. 130-1007)
No. 229-1072 200° to 400°F
• 1 ⁄ 4 " tubing inlet and outlet
• Includes fittings for 1 ⁄ 4 " tubing
• 30" capillary
• 3 ⁄ 8 " x 5 3 ⁄ 8 " nickel-plated bulb
• 1 ⁄ 4 " NPT nickel-plated stuffing box
• Dial not included (see No. 175-1071)
No. 220-1427 200° to 550°F
• 3 ⁄ 8 " NPT inlet and outlet
• 30" long capillary
• 3 ⁄ 16 " x 11 1 ⁄ 4 " bulb
• Dial not included (see No. 220-1434)
