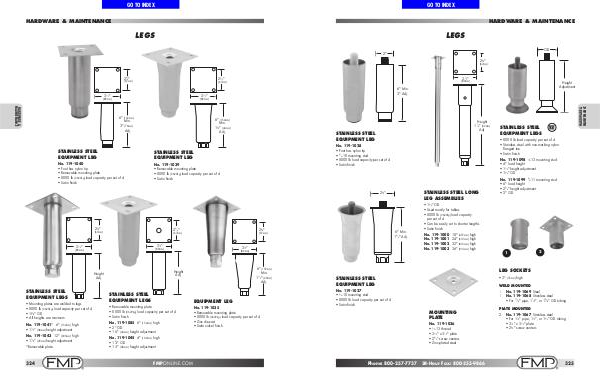

FMP-COMERSAMX CATALOGO FMP | Page 383

Hardware & Maintenance
LEGS
OD
2"
2 5 ⁄ 8 "
(67mm)
3 1 ⁄ 2 "
(89mm)
6" Min.
3" Adj.
Stainless Steel
Equipment Leg
Height
1 1 ⁄ 4 " (32mm)
Adj.
©2011 Franklin Machine Products
Height
Adjustment
STAINLESS STEEL
EQUIPMENT LEGS
©2011 Franklin Machine Products
• 8000 lb load capacity per set of 4
• Stainless steel with non-marking nylon
flanged toe
• Satin finish
No. 119-1028
• Foot has nylon tip
• 3 ⁄ 4 -10 mounting stud
• 8000 lb load capacity per set of 4
• Satin finish
©2011 Franklin Machine Products
Stainless Steel Long
Leg Assemblies
2 3 ⁄ 4 "
6" Min.
1 3 ⁄ 4 " Adj.
No. 119-1098 1 ⁄ 2 -13 mounting stud
• 4" load height
• 1 1 ⁄ 2 " height adjustment
• 1 5 ⁄ 8 " OD
No. 119-1099 5 ⁄ 8 -11 mounting stud
• 6" load height
• 2 3 ⁄ 4 " height adjustment
• 2" OD
• 1 5 ⁄ 8 " OD
• Used mostly for tables
• 8000 lb (3629kg) load capacity
per set of 4
• Can be easily cut to shorter lengths
• Satin finish
No.
No.
No.
No.
119-1000
119-1001
119-1002
119-1003
18" (457mm)
24" (610mm)
32" (813mm)
36" (914mm)
high
high
high
high
2
1
Leg Sockets
Stainless Steel
Equipment Leg
• 3"
©2011 Franklin Machine Products
high
Weld Mounted
No. 119-1027
• 3 ⁄ 4 -10 mounting stud
• 8000 lb load capacity per set of 4
• Satin finish
1. No. 119-1069 Steel
1. No. 119-1068 Stainless steel
• For 11 ⁄ 4 " pipe, 1 1 ⁄ 2 ", or 1 5 ⁄ 8 " OD tubing
Mounting
Plate
No. 119-1036
• 1 ⁄ 2 -13 thread
• 3 1 ⁄ 2 " x 3 1 ⁄ 2 " plate
• 2 5 ⁄ 8 " screw centers
• Zinc-plated steel
Phone: [phone]
(76mm)
24-Hour Fax: [phone]
Plate Mounted
2. No. 119-1067 Stainless steel
• For 1 1 ⁄ 4 " pipe, 1 1 ⁄ 2 ", or 1 5 ⁄ 8 " OD tubing
• 3 1 ⁄ 2 " x 3 1 ⁄ 2 " plate
• 2 5 ⁄ 8 " screw centers
