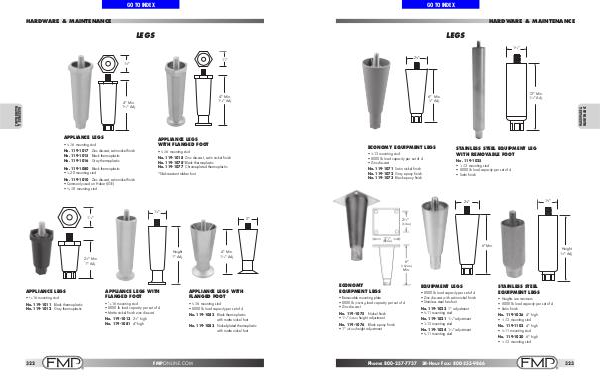

FMP-COMERSAMX CATALOGO FMP | Page 381

Hardware & Maintenance
LEGS
1 5 ⁄ 8 "
2 3 ⁄ 8 "
12" Min.
1 1 ⁄ 2 " Adj.
6" Min.
7
⁄ 8 " Adj.
©2011 Franklin Machine Products
©2011 Franklin Machine Products
ECONOMY EQUIPMENT LEGS
• 1 ⁄ 2 -13 mounting stud
• 8000 lb load capacity per set of 4
• Zinc die-cast
No. 119-1071 Satin nickel finish
No. 119-1072 Gray epoxy finish
No. 119-1073 Black epoxy finish
Stainless Steel Equipment Leg
with removable foot
No. 119-1025
• 1 ⁄ 2 -13 mounting stud
• 8000 lb load capacity per set of 4
• Satin finish
1 5 ⁄ 8 "
2 3 ⁄ 8 "
2 5 ⁄ 8 "
(67mm)
3 1 ⁄ 2 "
(89mm)
6" Min.
Height
1 1 ⁄ 2 " Adj.
6"
(152mm)
Min.
Economy
Equipment Legs
• Removable mounting plate
• 8000 lb (3629kg) load capacity per set of 4
• Zinc die-cast
No. 119-1075 Nickel finish
• 1 1 ⁄ 4 " (32mm) height adjustment
No. 119-1076 Black epoxy finish
• 1" (25mm) height adjustment
Phone: [phone]
Equipment Legs
©2011 Franklin Machine Products
• 8000 lb load capacity per set of 4
• Zinc die-cast with satin nickel finish
• Stainless steel hex foot
No. 119-1022 1" adjustment
• 5 ⁄ 8 -11 mounting stud
No. 119-1021 1 1 ⁄ 8 " adjustment
• 1 ⁄ 2 -13 mounting stud
No. 119-1024 1 1 ⁄ 8 " adjustment
• 5 ⁄ 8 -11 mounting stud
24-Hour Fax: [phone]
Stainless Steel
Equipment Legs
©2011 Franklin Machine Products
• Heights are minimum
• 8000 lb load capacity per set of 4
• Satin finish
No. 119-1026 4" high
• 1 ⁄ 2 -13 mounting stud
No. 119-1102 4" high
• 5 ⁄ 8 -11 mounting stud
No. 119-1030 6" high
• 1 ⁄ 2 -13 mounting stud
323
