FMP-COMERSAMX CATALOGO FMP | Page 380

Hardware & Maintenance

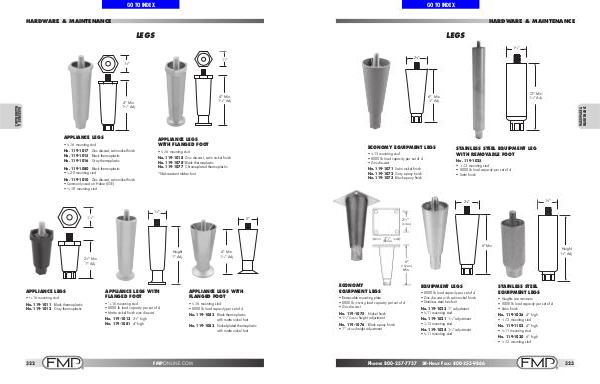

LEGS
1 1 ⁄ 4 "
1 1 ⁄ 2 "
4" Min.
1 3 ⁄ 4 " Adj.
4" Min.
1 3 ⁄ 4 " Adj.
©2011 Franklin Machine Products
Appliance Legs
©2011 Franklin Machine Products
• 3 ⁄ 8 -16 mounting stud
No. 119-1017 Zinc die-cast, satin nickel finish
No. 119-1015 Black thermoplastic
No. 119-1016 Gray thermoplastic
No. 119-1080 Black thermoplastic
• 1 ⁄ 4 -20 mounting stud
Appliance Legs
with Flanged Foot
• 3 ⁄ 8 -16 mounting stud
No. 119-1018 Zinc die-cast, satin nickel finish
No. 119-1078* Black thermoplastic
No. 119-1077 Chrome-plated thermoplastic
*Skid-resistant rubber foot
No. 119-1010 Zinc die-cast, satin nickel finish
• Commonly used on Hobart (GE)
• 5 ⁄ 16 -18 mounting stud
1 1 ⁄ 4 "
1 1 ⁄ 4 "
2"
Height
1" Adj.
2 1 ⁄ 2 " Min.
1" Adj.
4" Min.
1 1 ⁄ 4 " Adj.
©2011 Franklin Machine Products
©2011 Franklin Machine Products
Appliance Legs
• 3 ⁄ 8 -16 mounting stud
No. 119-1011 Black thermoplastic
No. 119-1012 Gray thermoplastic
Appliance Legs with
Flanged Foot Appliance Legs with
Flanged Foot
• 3 ⁄ 8 -16 mounting stud
• 8000 lb load capacity per set of 4
• Matte nickel finish zinc die-cast • 3 ⁄ 8 -16 mounting stud
• 8000 lb load capacity per set of 4
©2011 Franklin Machine Products
No. 119-1013 2 1 ⁄ 2 " high
No. 119-1081 4" high
322
No. 119-1082 Black thermoplastic

with matte nickel foot
No. 119-1083 Nickel-plated thermoplastic

with matte nickel foot
fmponline.com
