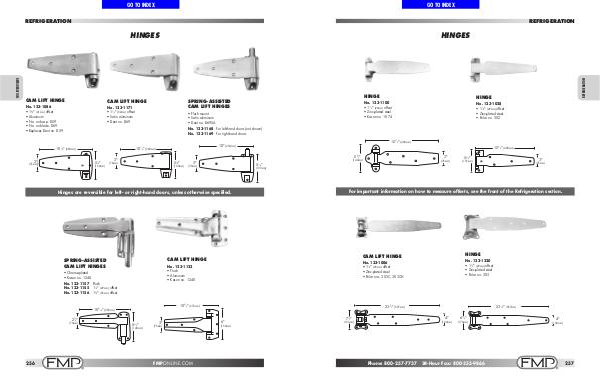

REFRIGERATION
HINGES
Cam Lift Hinge Cam Lift Hinge
No. 123-1086
• 1 5 ⁄ 8 " (41mm) offset
• Aluminum
• No. on base: D59
• No. on blade: D69
• Replaces Dent no. D59 No. 123-1171
• 1 1 ⁄ 4 " (32mm) offset
• Satin aluminum
• Dent no. D69
Spring-Assisted
Cam Lift Hinges
• Flush mount
• Satin aluminum
• Dent no. D69SA
No. 123-1168 For left-hand doors (not shown)
No. 123-1169 For right-hand doors
10 1 ⁄ 4 "
10 1 ⁄ 4 " (260mm)
3"
5 1 ⁄ 4 "
(76mm)
(133mm)
10"
(260mm)
3"
5 1 ⁄ 4 "
(76mm)
(133mm)
(254mm)
3"
5 1 ⁄ 4 "
(76mm)
(133mm)
Hinges are reversible for left- or right-hand doors, unless otherwise specified.
Cam Lift Hinge
Spring-Assisted
Cam Lift Hinges
No. 123-1122
• Flush
• Aluminum
• Kason no. 1240
• Chrome-plated
• Kason no. 1248
No. 123-1157 Flush
No. 123-1155 1 1 ⁄ 8 " (29mm) offset
No. 123-1156 1 3 ⁄ 8 " (35mm) offset
10 3 ⁄ 4 "
10 3 ⁄ 16 " (259mm)
2 7 ⁄ 8 "
(73mm)
5 5 ⁄ 8 "
(143mm)
256
(273mm)
3"
(76mm)
fmponline.com
6"
(152mm)
