PLUMBING

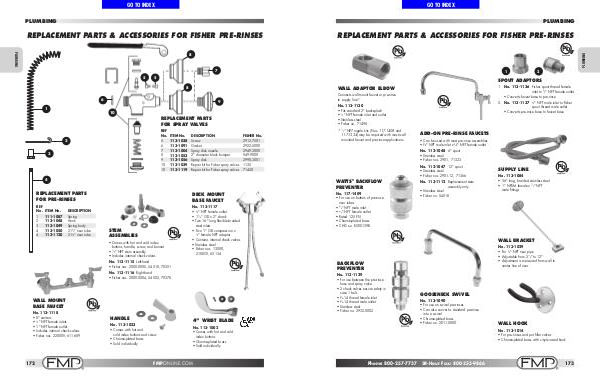

Replacement Parts & Accessories for Fisher Pre-Rinses
PLUMBING
8
7
5 5
8
6 9
1
3
2
10
REPLACEMENT PARTS |
FOR SPRAY VALVES |
REF |
No. |
ITEM No. |
DESCRIPTION |
FISHER No. |
5 |
113-1038 |
Screw |
2912-7501 |
6 |
113-1091 |
Gasket |
2922-5000 |
7 |
113-1004 |
Spray disk nozzle |
2949-3000 |
8 |
113-1053 |
2 " diameter black bumper |
949-9000 |
9 |
113-1056 |
Spray disk |
2990-3001 |
10 |
113-1039 |
Repair kit for Fisher spray valves |
1135 |
10 |
113-1119 |
Repair kit for Fisher spray valves |
71420 |
4
Replacement Parts for Pre-Rinses
REF |
No. ITEM No. |
DESCRIPTION |
1 |
111-1087 |
Spring |
2 |
113-1048 |
Hook |
3 |
113-1049 |
Spring body |
4 |
113-1050 |
21 3 ⁄ 4 " riser tube |
4 |
113-1120 |
21 3 ⁄ 4 " riser tube |
STEM ASSEMBLIES
• Comes with hot and cold index buttons, handle, screw, and bonnet
• 1 ⁄ 2 " NPT stem assembly
• Includes internal check valves
No. 113-1115 Left-hand
• Fisher nos. 2000-0005, 54510, 70351
No. 113-1116 Right-hand
• Fisher nos. 2000-0004, 54502, 70378
Deck Mount Base Faucet
No. 113-1117
• 3 ⁄ 8 " NPT female outlet
• 1 1 ⁄ 16 " OD x 2 " shank
• Two 16 " long flexible braided steel inlets
• Two 3 ⁄ 8 " OD compression x 1 ⁄ 2 " female NPT adaptor
• Contains internal check valves
• Stainless steel
• Fisher nos. 13080, 2100CV, 63134
Wall Mount Base Faucet
No. 113-1118
• 8 " centers
• 1 ⁄ 2 " NPT female inlets
• 3 ⁄ 8 " NPT female outlet
• Includes internal check valves
• Fisher nos. 22000V, 611689
Handle
No. 113-1023
• Comes with hot and cold index buttons and screw
• Chrome-plated brass
• Sold individually
4 " Wrist Blade
No. 113-1002
• Comes with hot and cold index buttons
• Chrome-plated brass
• Sold individually
172 fmponline. com
