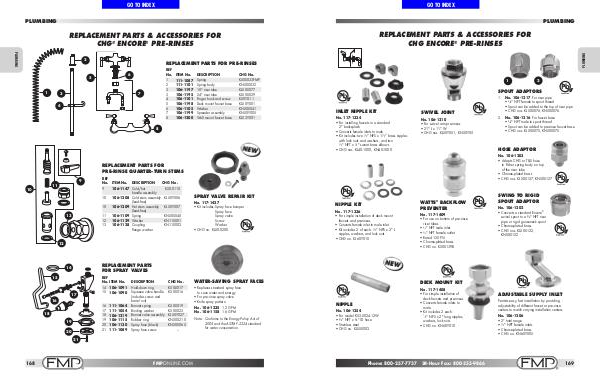

FMP-COMERSAMX CATALOGO FMP | Page 226

PLUMBING
Replacement Parts & Accessories for
CHG ® Encore ® Pre-Rinses
©2012 Franklin Machine Products
2
Replacement Parts For PRE-RINSEs
5
1
REF
No.
1
2
3
3
4
5
6
7
8
6
3
7
4
ITEM No.
111-1087
111-1101
106-1197
106-1195
106-1101
106-1198
106-1105
106-1199
106-1200
DESCRIPTION
Spring
Spring body
18" riser tube
24" riser tube
Finger hook and screw
Deck mount faucet base
Washer
Spreader assembly
Wall mount faucet base
CHG No.
K50X033FMP
KN50X032
KL50X077
KL50X029
K50Y011
KL50Y001
KN50X041
KN50Y005
KL53Y001
8
©2012 Franklin Machine Products
Replacement Parts For
PRE-RINSE Quarter-TURN STEMS
9
11
10
13
©2012 Franklin Machine Products
12
REF
No. ITEM No. DESCRIPTION
9
106-1147 Cold/hot
handle assembly
10 106-1208 Cold stem assembly
(lead-free)
10 106-1209 Hot stem assembly
(lead-free)
11 106-1109 Spring
12 106-1129 Washer
13 106-1128 Coupling
flange washer
CHG No.
K50-0110
KL50Y006
KL50Y007
KN50X048
KN11X001
KN11X002
No. 117-1427
• Kit includes: Spray face bumper

Spray face

Spray valve

Screw

Washer
• CHG no. KL50-0200
©2012 Franklin Machine Products
Replacement Parts
For SPRAY VALVES
14
15
17
©2012 Franklin Macchine
Products
REF
No. ITEM No.
14 106-1091
15 106-1090
16
16
17
18
19
20
21
18
19
20
111-1064
111-1054
106-1219
106-1115
106-1130
111-1089
DESCRIPTION
Hold-down ring
Squeeze valve handle
(includes screw and
barrel nut)
Bonnet spring
Binding washer
Bonnet valve assembly
Rubber ring
Spray face (black)
Spray face screw
CHG No.
K50-X017
K50X016 Water-Saving Spray Faces
K50X019
K50X023
KL50Y027
KN50X210
KN50X065
– No. 106-1235 1.2 GPM
No. 106-1158 1.6 GPM
21
©2012 Franklin Machine Products
168
SPRAY VALVE REPAIR KIT
fmponline.com
• Replaces standard spray face
to save water and energy
• For pre-rinse spray valve
• Knife spray pattern
Note: Conforms to the Energy Policy Act of
2005 and the ASTM F-2324 standard
for water conservation.
