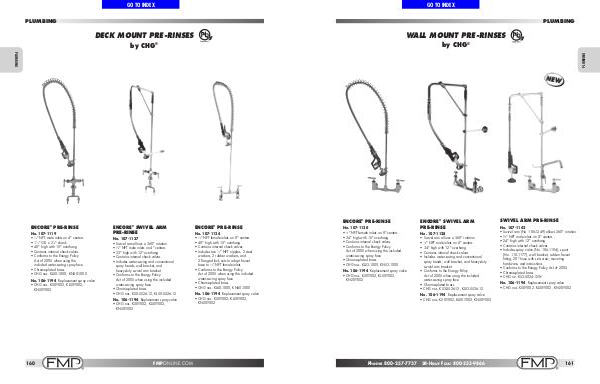

PLUMBING
deck mount pre-rinses
by CHG ®
Encore ® Pre-Rinse
No. 107-1119
• 1 ⁄ 4 " NPT male inlets on 4" centers
• 1 1 ⁄ 8 " OD x 2 1 ⁄ 4 " shank
• 40" high with 15" overhang
• Contains internal check valves
• Conforms to the Energy Policy
Act of 2005 when using the
included water-saving spray face
• Chrome-plated brass
• CHG nos. KL50-1000, KN50-1000
No. 106-1194 Replacement spray valve
• CHG nos. K50Y002, KL50Y002,
KN50Y002
ENCORE ® SWIVEL ARM
PRE-RINSE
No. 107-1127
• Swivel arm allows a 360° rotation
• 1 ⁄ 4 " NPT male inlets on 4" centers
• 33" high with 12" overhang
• Contains internal check valves
• Includes water-saving and conventional
spray heads, wall bracket, and
heavy-duty swivel arm bracket
• Conforms to the Energy Policy
Act of 2005 when using the included
water-saving spray face
• Chrome-plated brass
• CHG nos. K50-5526-12, KL50-5526-12
No. 106-1194 Replacement spray valve
• CHG nos. K50Y002, KL50Y002,
KN50Y002
160
fmponline.com
Encore ® Pre-Rinse
No. 107-1124
• 1 ⁄ 2 " NPT female inlets on 8" centers
• 40" high with 15" overhang
• Contains internal check valves
• Includes two 1 ⁄ 2 " NPT nipples, 2 steel
washers, 2 rubber washers, and
2 flanged lock nuts to adapt faucet
base to 1 ⁄ 2 " NPT female inlets
• Conforms to the Energy Policy
Act of 2005 when using the included
water-saving spray face
• Chrome-plated brass
• CHG nos. KL60-1000, KN60-1000
No. 106-1194 Replacement spray valve
• CHG nos. K50Y002, KL50Y002,
KN50Y002
